55° Tungsten Steel Aluminum Deep Groove Long Neck End Mill, 3-Flute, High-Gloss Mirror Finish, Chip Avoidance, Extended 1.0, 1.5, 2.0, 2.5mm
(Please contact me for more sizes) In view of the characteristics of aluminum alloy deep groove processing, this 55-degree tungsten steel aluminum deep groove long-neck milling cutter adopts a three-edge structure, has a high-gloss mirror effect, and provides an avoidance and lengthening design. . Milling cutters have various specifications, ranging from 1.0mm to 2.5mm, which can meet the needs of various deep groove processing. The choice of carbide material ensures the durability and cutting performance of the tool.
Contact Us

Product Details


55° Tungsten Steel Aluminum Deep Groove Long Neck End Mill, 3-Flute, High-Gloss Mirror Finish, Chip Avoidance, Extended 1.0, 1.5, 2.0, 2.5mm

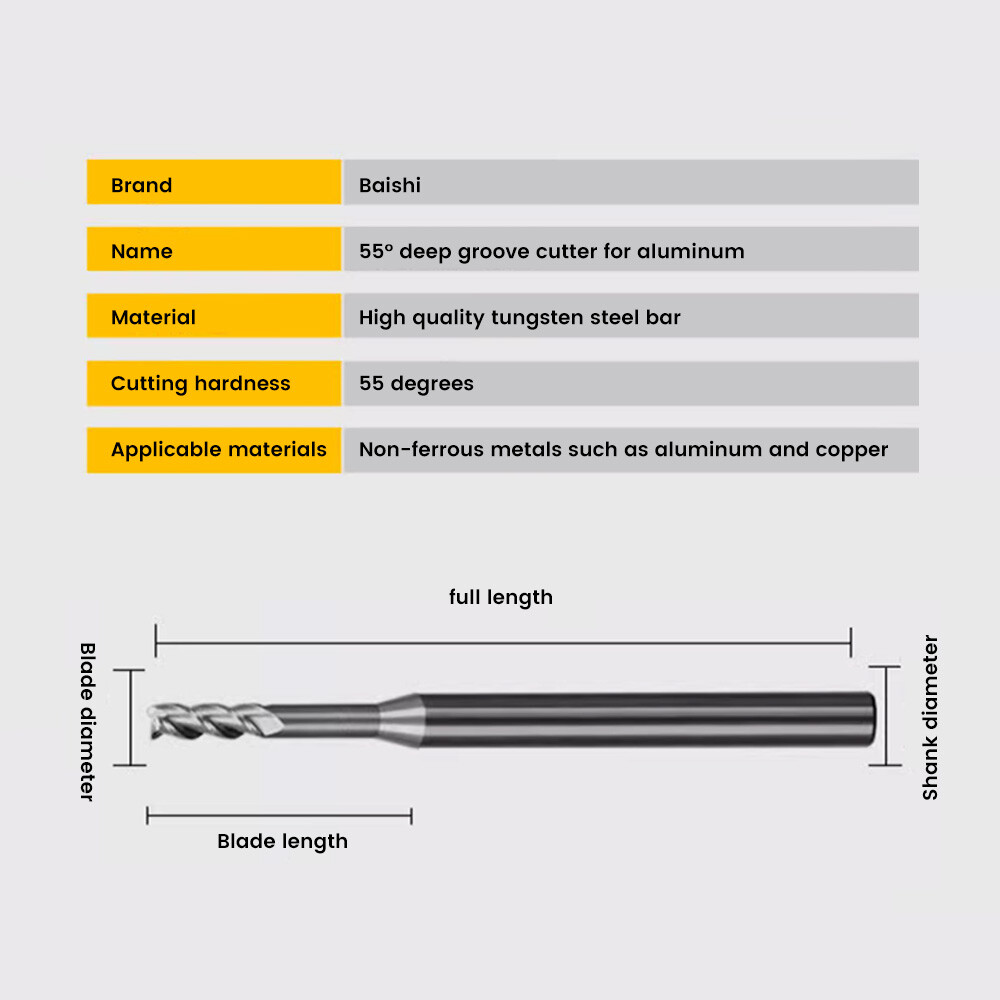

End Mill Specifications（d/mm）Blade diameter（Φ）Blade length = (actual blade length + clearance)Shank diameterTotal length(L）Number of Teeth（T）
Φ1*6（3+3）*Φ4*50*3T16  （3+3）4503
Φ1*8（3+5）*Φ4*50*3T18   ( 3+5)4503
Φ1*10（3+7）*Φ4*50*3T110   （3+7）4503
Φ1*12（3+9）*Φ4*50*3T112   （3+9）4503
Φ1*15（3+12）*Φ4*50*3T115   （3+12）4503
Φ1*20（3+17）*Φ4*50*3T120   （3+17）4503
Φ1.5*6（4.5+1.5）*Φ4*50*3T1.56    （4.5+1.5）4503
Φ1.5*8（4.5+3.5）*Φ4*50*3T1.58    （4.5+3.5）4503
Φ1.5*10（4.5+5.5）*Φ4*50*3T1.510    （4.5+5.5）4503
Φ1.5*12（4.5+7.5）*Φ4*50*3T1.512    （4.5+7.5）4503
Φ1.5*15（4.5+10.5）*Φ4*50*3T1.515   （4.5+10.5）4503
Φ1.5*20（4.5+15.5）*Φ4*50*3T1.520   （4.5+15.5）4503
Φ2*8（6+2）*Φ4*50*3T28     （6+2）4503
Φ2*10（6+4）*Φ4*50*3T210    （6+4）4503
Φ2*12（6+6）*Φ4*50*3T212     （6+6）4503
Φ2*15（6+9）*Φ4*50*3T215     （6+9）4503
Φ2*20（6+14）*Φ4*50*3T220     （6+14）4503
Φ2.5*10（7.5+2.5）*Φ4*50*3T2.510     （7.5+2.5）4503
Φ2.5*12（7.5+4.5）*Φ4*50*3T2.512     （7.5+4.5）4503
Φ2.5*15（7.5+7.5）*Φ4*50*3T2.515      （7.5+7.5)4503
Φ2.5*20（7.5+12.5）*Φ4*50*3T2.520      (7.5+15.5)4503
Φ3*12（9+3）*Φ4*50*3T312      (9+3)4503
Φ3*15（9+6）*Φ4*50*3T315      (9+6)4503
Φ3*20（9+11）50*Φ4320      (9+11)4503
