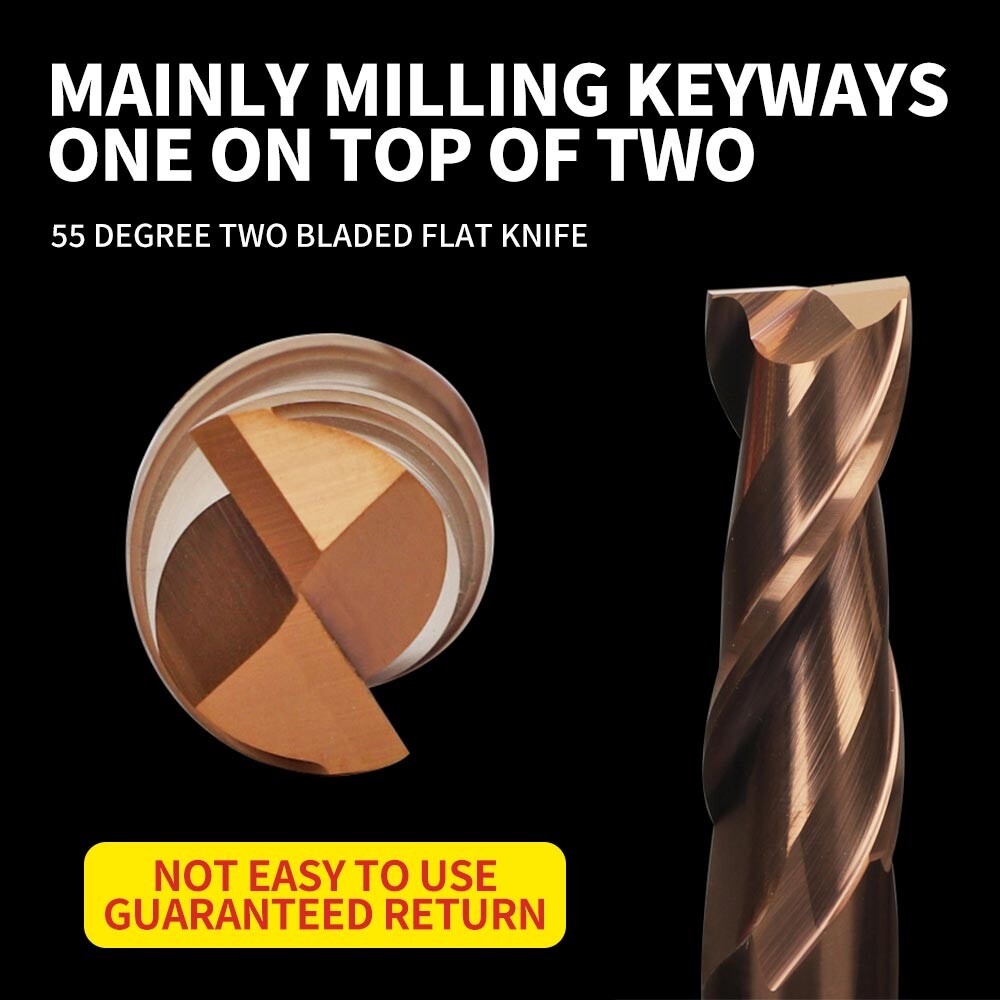

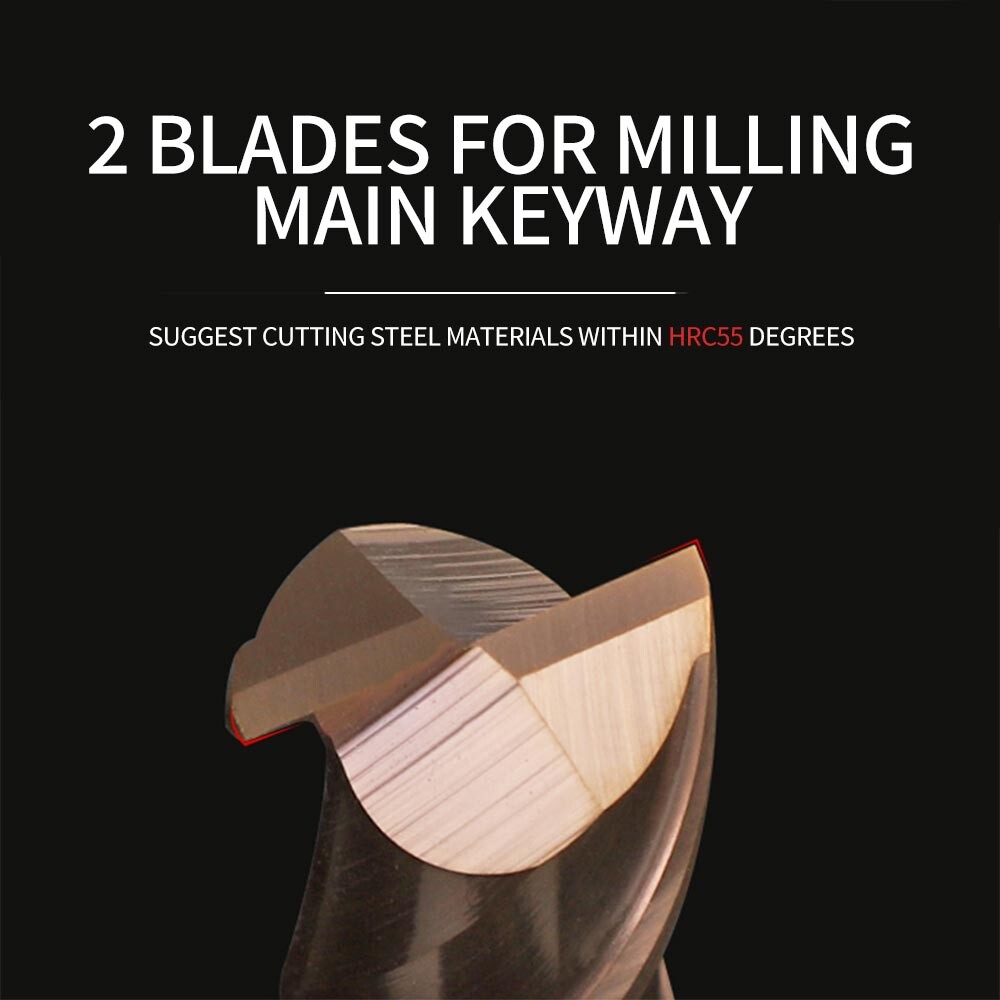

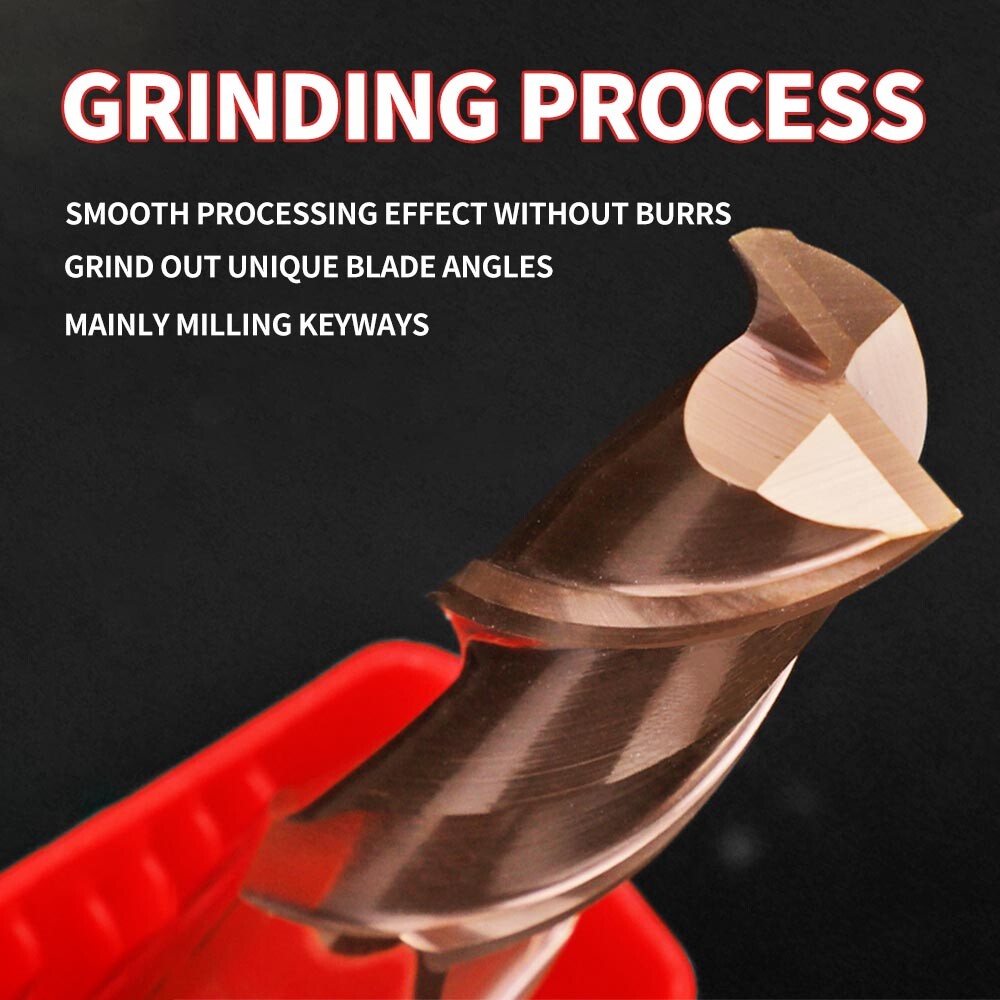

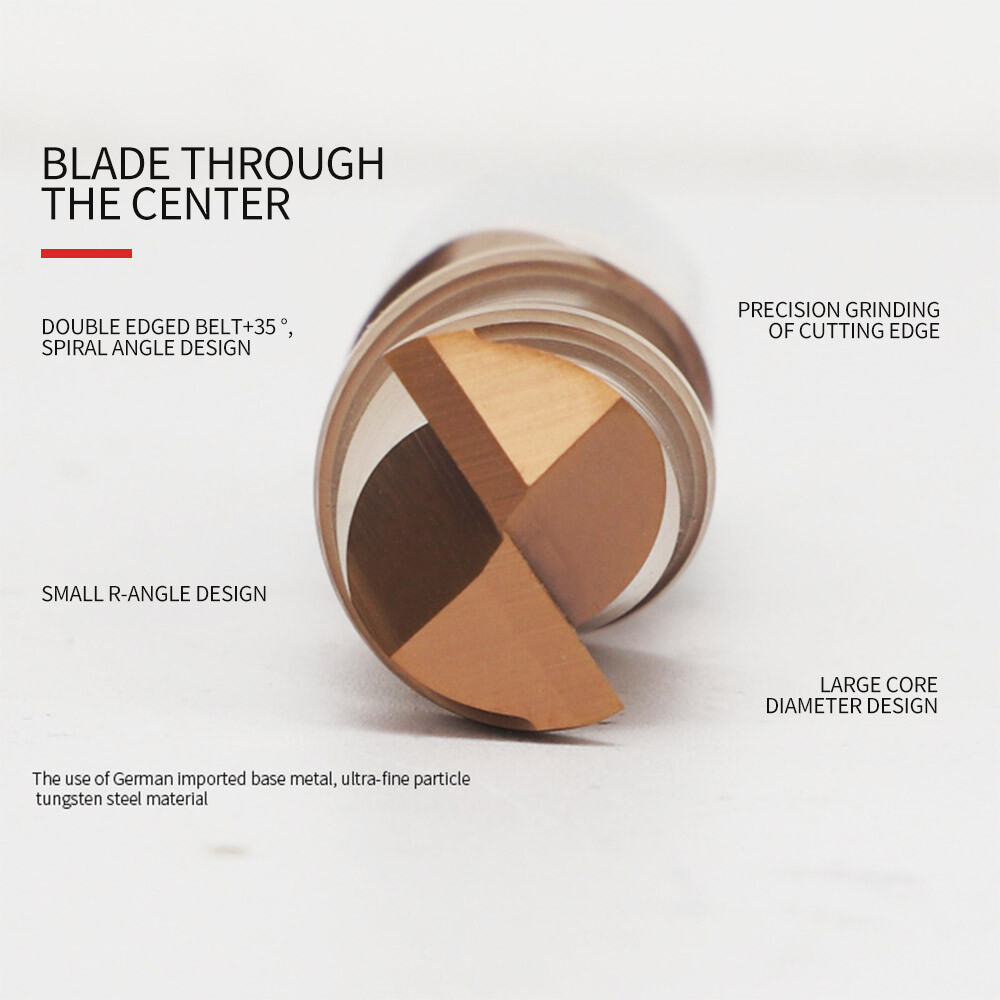

55° Tungsten Steel End Mill, 2-Flute Keyway Cutter, Extended, CNC Tool, Coated, Flat Bottom, Carbide End Mill
(Please contact me for more sizes) In order to meet the special needs of avoidance and lengthening processing, this 55-degree tungsten steel long-neck deep groove knife adopts a four-edge structure and a flat-bottom design. The specifications cover the range of 1.0mm to 2.5mm. The milling cutter is treated with alloy coating, which not only enhances durability but also improves cutting performance. No matter what kind of processing scenario requires space avoidance and lengthening, this milling cutter can provide excellent processing results.
Contact Us

Product Details


55° Tungsten Steel End Mill, 2-Flute Keyway Cutter, Extended, CNC Tool, Coated, Flat Bottom, Carbide End Mill

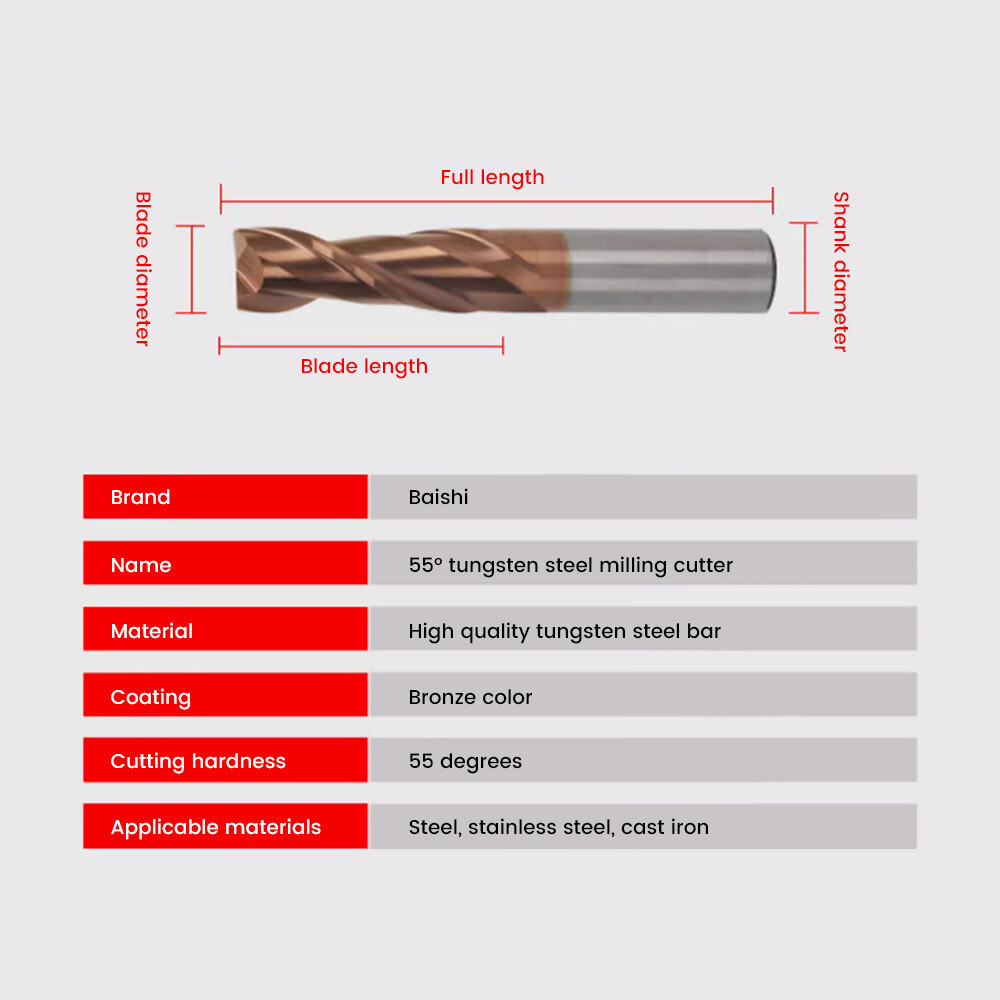

End Mill Specifications（d/mm）Blade Diameter

Flute

Length		Shank Diameter（D）Overall Length（L）Number of Flutes（F）
1.0*3.0*4D*50L*2F134502
1.5*4.0*4D*50L*2F1.544502
2.0*5.0*4D*50L*2F254502
2.5*6.0*4D*50L*2F2.564502
3.0*8.0*4D*50L*2F384502
3.5*9.0*4D*50L*2F3.594502
4.0*10*4D*50L*2F4104502
4.0*16*4D*75L*2F4164752
4.0*20*4D*100L*2F42041002
5.0*13*6D*50L*2F5136502
6.0*15*6D*50L*2F6156502
6.0*20*6D*75L*2F6206752
6.0*30*6D*100L*2F63061002
8*20*8D*60L*2F8208602
8*25*8D*75L*2F8258752
10*25*10D*75L*2F102510752
10*40*10D*100L*2F1040101002
12*30*12D*75L*2F123012752
12*45*12D*100L*2F1245121002
14*45*14D*100L*2F1445141002
16*45*16D*100L*2F1645161002
18*45*18D*100L*2F1845181002
20*45*20D*100L*2F2045201002
3*9*3D*50L*2F393502
3*10*3D*75L*2F3103752
3*12*D3D*100L*2F31231002
5*13*5D*50L*2F5135502
5*20*5D*75L*2F5205752
5*25*5D*100L*2F52551002
6*45*6D*150L*2F64561502
8*35*8D*100L*2F83581002
8*50*8D*150L*2F85081502
10*55*10D*150*2F1055101502
12*60*12D*150*2F1260121502
14*60*14D*150*2F1460141502
16*70*16D*150*2F1670161502
18*70*18D*150*2F1870181502
20*70*20D*150*2F2070201502
7*20*8D*60L*2F7208602
9*25*10D*75L*2F92510752
11*30*12D*75L*2F113012752
13*40*14D*100*2F1340141002
15*45*16D*100*2F1545161002
