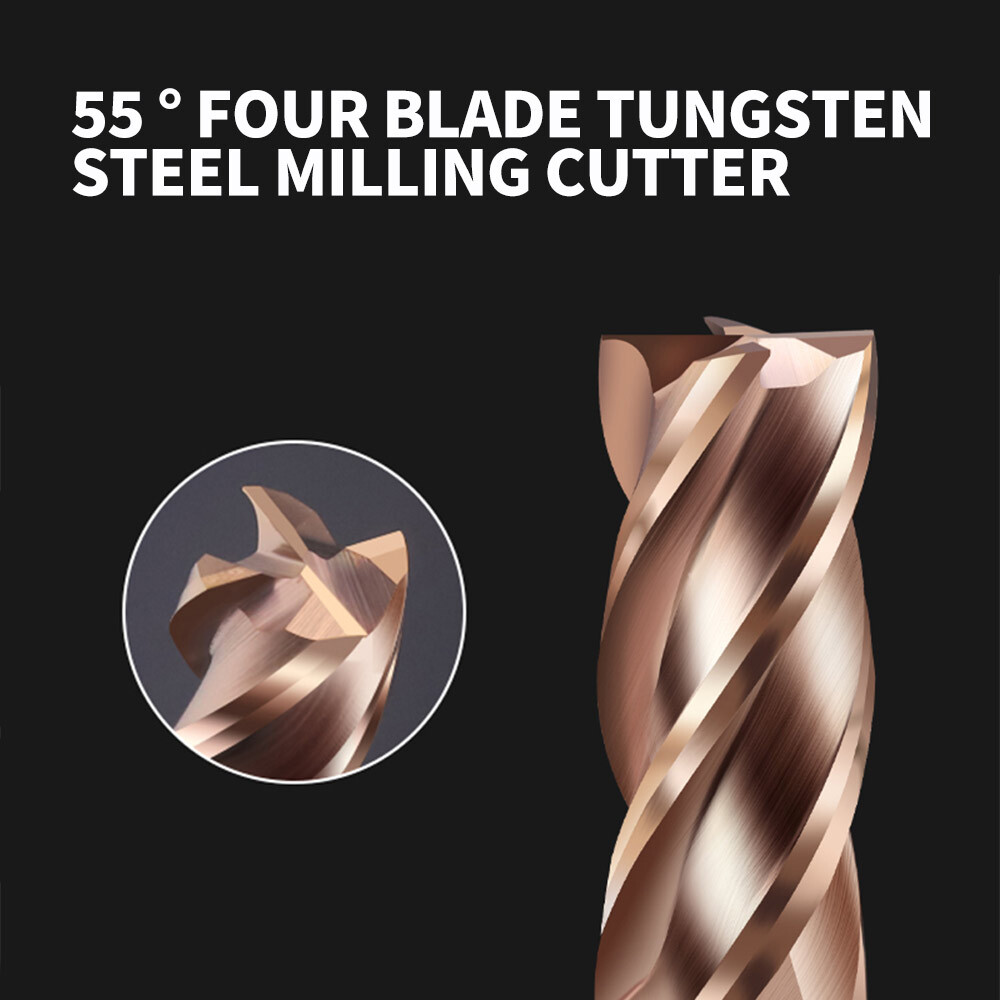

55° Tungsten Steel End Mill 4-Flute Flat Bottom 16 20mm Carbide End Mill Extended 2 3 6 8mm

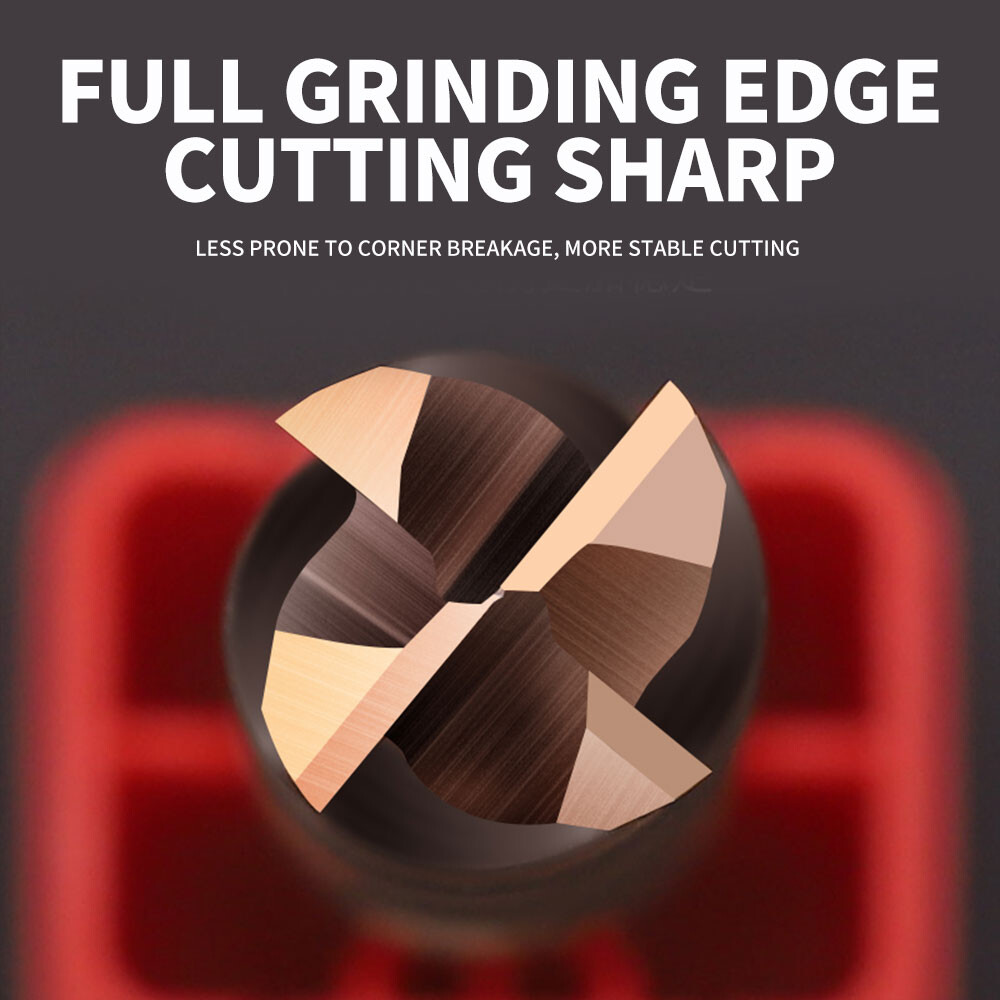

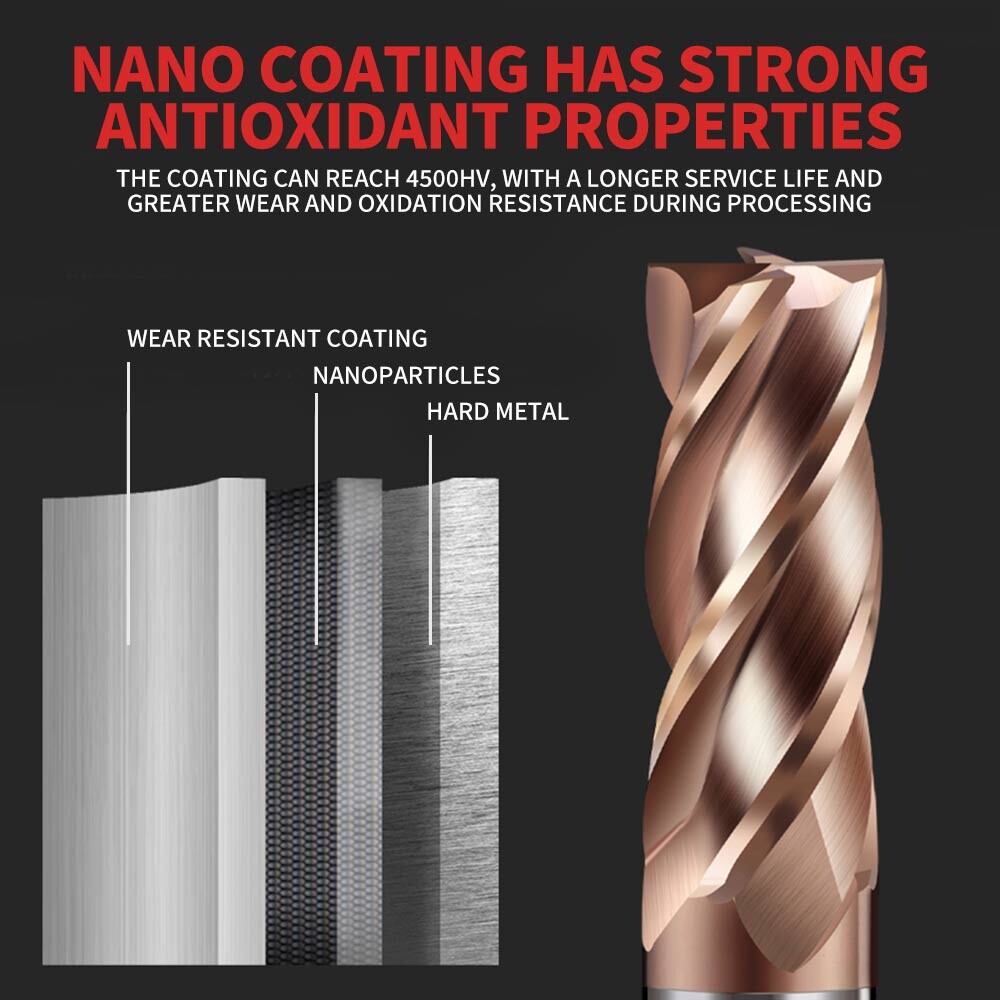

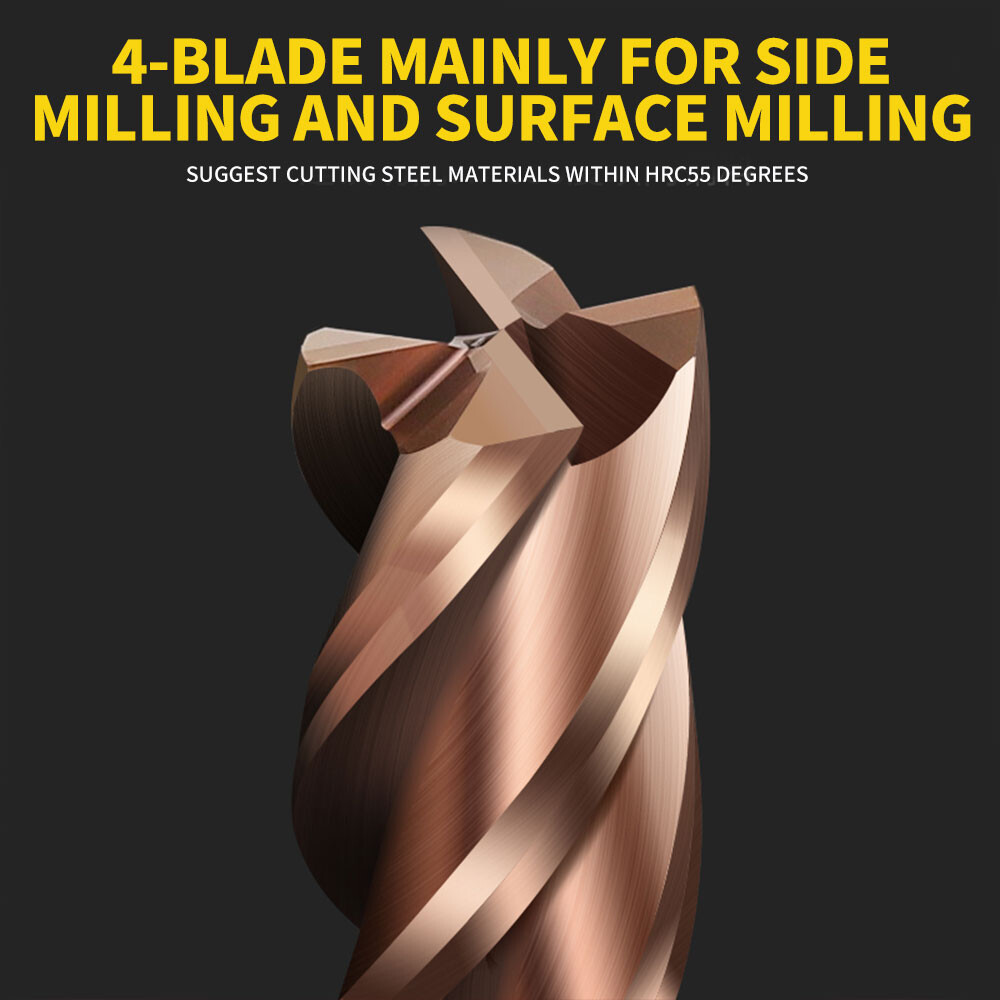

(Please contact me for more sizes) The flat-bottom milling cutter adopts a four-edge structure and is specially designed for flat-bottom processing, which can improve cutting efficiency while maintaining processing stability. Milling cutter specifications cover a variety of sizes from 16mm to 20mm, and extended designs from 2mm to 8mm are provided to meet the needs of different processing depths. The material of the carbide end mill has been surface-coated to further enhance the tool's durability and cutting performance. No matter what your flat bottom machining needs are, this milling cutter can handle it.

Product Details

55° Tungsten Steel End Mill 4-Flute Flat Bottom 16 20mm Carbide End Mill Extended 2 3 6 8mm

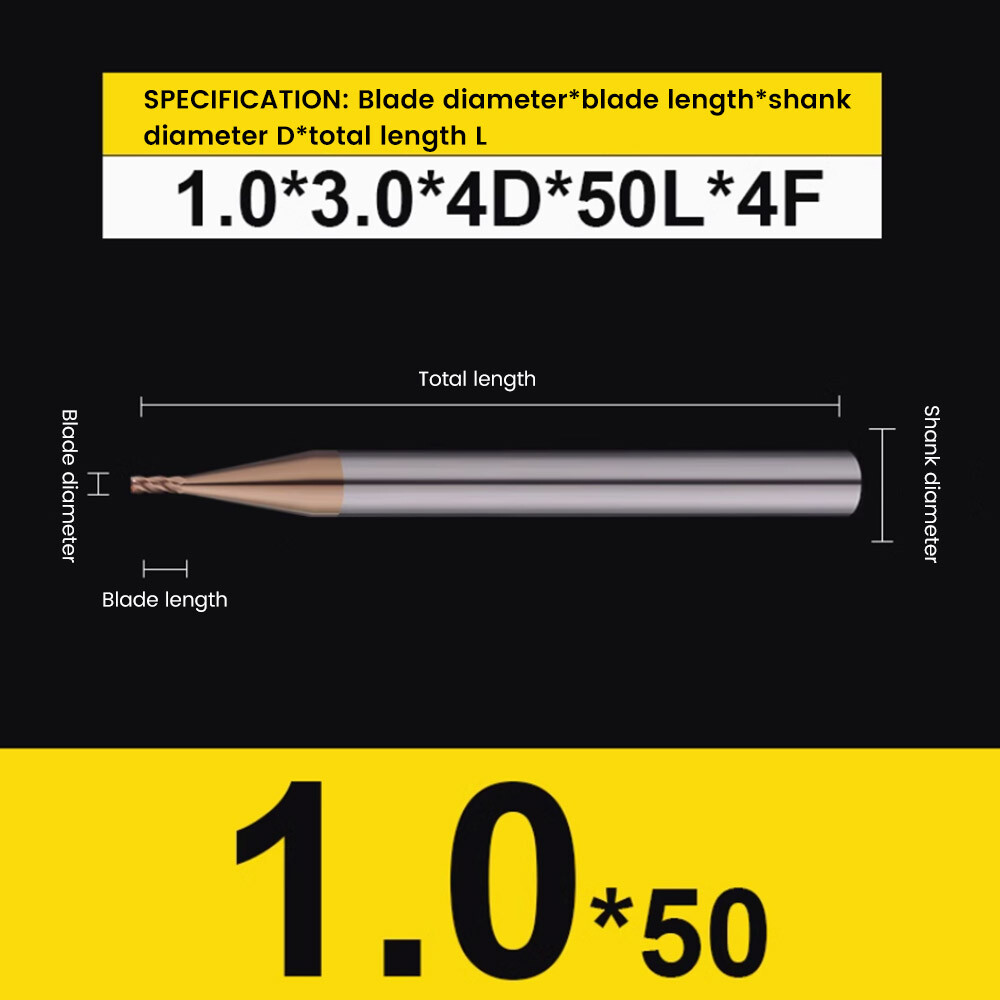

End Mill Specifications（d/mm）	Diameter	Flute Length	Shank Diameter（D）	Overall Length（L）	Number of Flutes（F）
1.03.04D50L4F	1	3	4	50	4
1.54.04D50L4F	1.5	4	4	50	4
2.05.04D50L4F	2	5	4	50	4
2.56.04D50L4F	2.5	6	4	50	4
3.08.04D50L4F	3	8	4	50	4
3.59.04D50L4F	3.5	9	4	50	4
4.0104D50L4F	4	10	4	75	4
4.0164D75L4F	4	16	4	100	4
4.0204D100L4F	4	20	6	50	4
5.0136D50L4F	5	13	6	50	4
5135D50L4F	5	13	5	50	4
5205D75L4F	5	20	5	75	4
5255D100L4F	5	25	5	100	4
6.0156D50L4F	6	15	6	50	4
6.01850*4F	6	18	6	50	4
6.0246D75L4F	6	24	6	75	4
6.0306D100L4F	6	30	6	100	4
6456D150L4F	6	45	6	150	4
7208D60L4F	7	20	8	60	4
8208D60L4F	8	20	8	60	4
8.02460*4F	8	24	4	60	4
8258D75L4F	8	25	8	75	4
8358D100L4F	8	35	8	100	4
8508150L4F	8	50	8	150	4
8508200L4F	8	50	8	200	4
92510D75L4F	9	25	10	75	4
102510D75L4F	10	25	10	75	4
103010D75L4F	10	30	10	75	4
104010D100L4F	10	40	10	100	4
105510D1504F	10	55	10	150	4
106510200L4F	10	65	10	200	4
113012D75L4F	11	30	12	75	4
123012D75L4F	12	30	12	75	4
123575*4F	12	35	12	75	4
124512D100L4F	12	45	12	100	4
125512D1504F	12	55	12	150	4
127012200L4F	12	70	12	200	4
134014D1004F	13	40	14	100	4
144514D100L4F	14	45	14	100	4
147514D1504F	14	80	14	150	4
148014200L4F	14	80	14	200	4
154516D1004F	15	45	16	100	4
164516D100L4F	16	45	16	100	4
167516D1504F	16	75	16	150	4
168516200L4F	16	85	16	200	4
184518D100L4F	18	45	18	100	4
187518D1504F	18	75	18	150	4
188518200L4F	18	85	18	200	4
204520D100L4F	20	45	20	100	4
207520D1504F	20	75	20	150	4
209020200L4F	20	90	20	200	4
393D50L4F	3	9	3	50	4
3.0103D75L4F	3	10	3	75	4
3.0123D1004F	3	12	3	100	4
396D50L4F	3	9	6	50	4
496D50L4F	4	9	6	50	4
4.5136D50L4F	4.5	13	6	50	4
5.5156D50L4F	5.5	15	6	50	4
6.5208D60L4F	6.5	20	8	60	4
7.5208D60L4F	7.5	20	8	60	4
8.52510D754F	8.5	25	10	75	4
9.52510D754F	9.5	25	10	75	4
1050100L*4F	10	50	10	100	4
1250100L*4F	12	50	12	100	4
14D475L4F	1	4	4	75	4
1.56D475L4F	1.5	6	4	75	4
28D475L4F	2	8	4	75	4
2.510D475L4F	2.5	10	4	75	4
312D475L4F	3	12	4	75	4
3.514D475L4F	3.5	14	4	75	4
