68° Tungsten Steel End Mill, 4-Flute, Special for Stainless Steel and Titanium Alloy, U-Shaped Groove, Unequal Spiral, Unequal Division, High-Efficiency Dynamic

(Please contact me for more sizes) This 68-degree tungsten steel milling cutter came into being for the high-precision processing needs of stainless steel and titanium alloys. Its four-edge structure, combined with the U-shaped groove design, achieves efficient dynamic cutting of unequal spirals. The cutting performance and durability of milling cutters are excellent, making them ideal for a variety of high-precision machining applications.

Product Details

68° Tungsten Steel End Mill, 4-Flute, Special for Stainless Steel and Titanium Alloy, U-Shaped Groove, Unequal Spiral, Unequal Division, High-Efficiency Dynamic

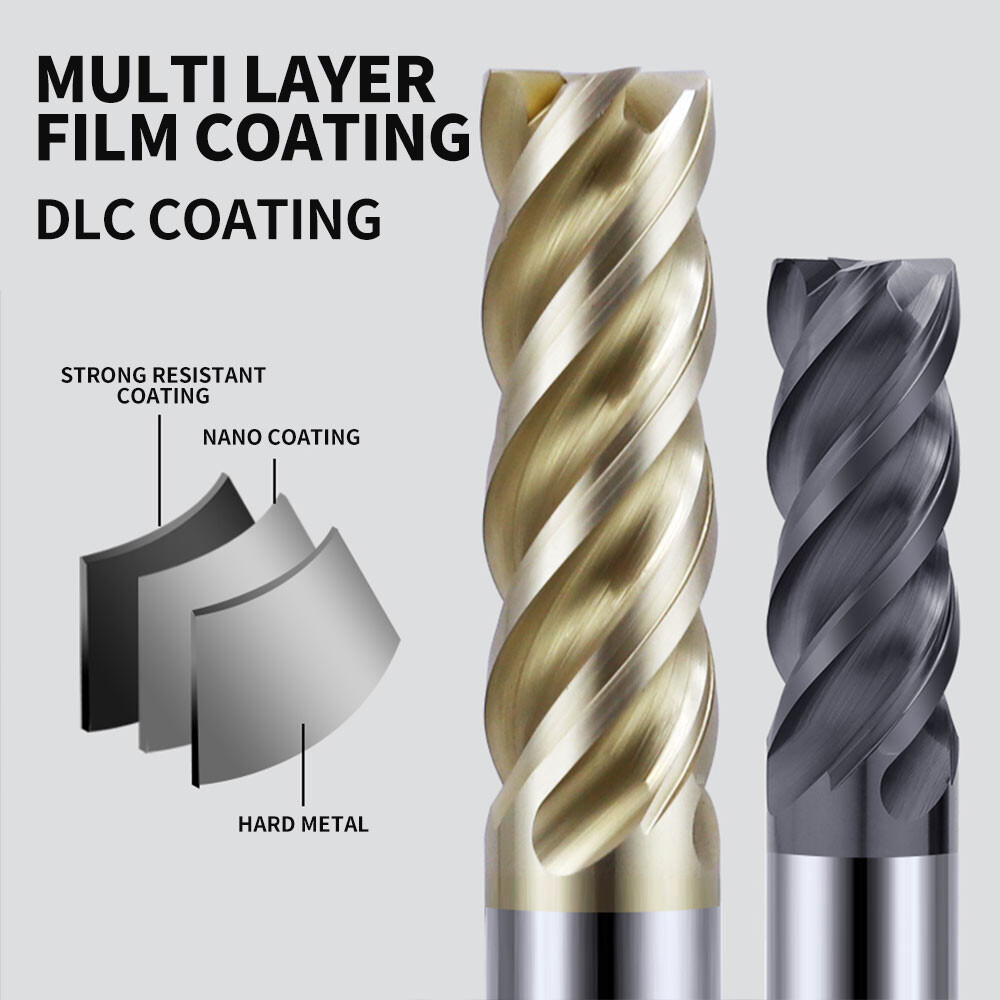

(Coating) Nano black is the economical version, while gold is the high-end version

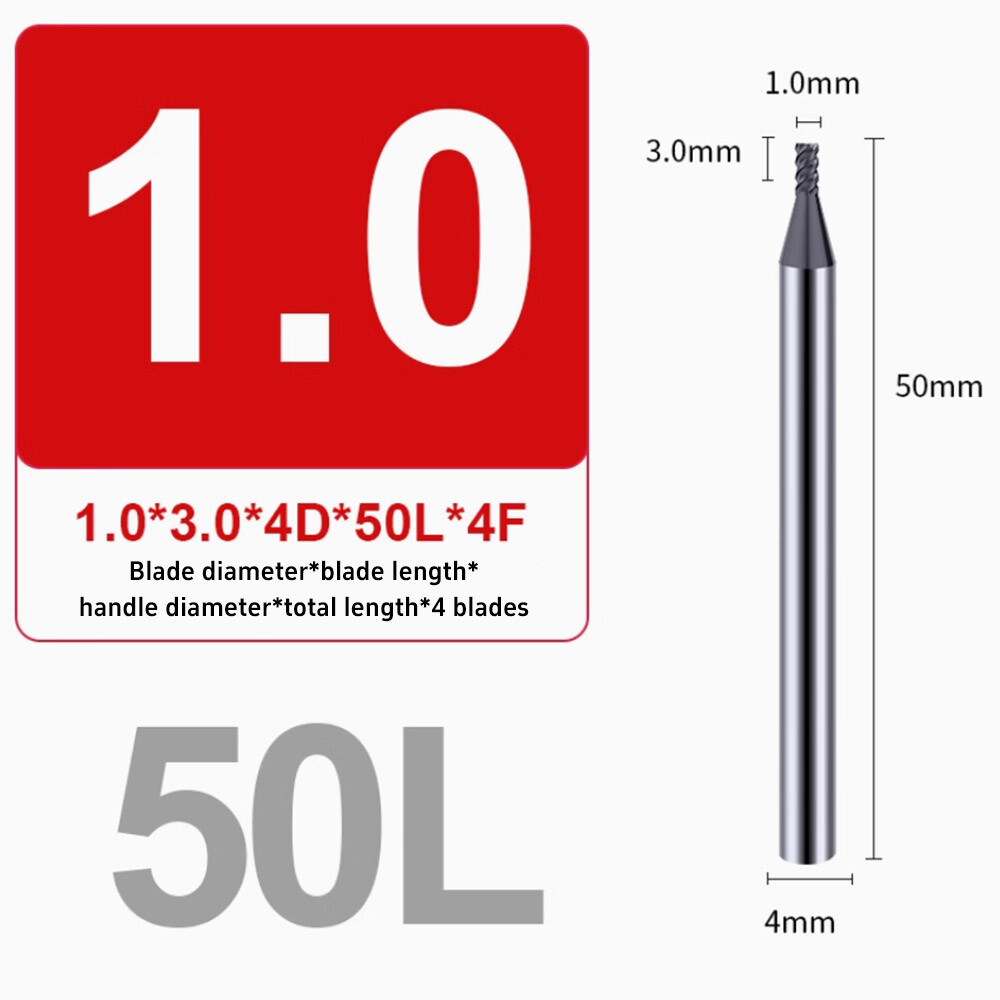

End Mill Specifications（d/mm）	Diameter	Flute Length	Shank Diameter（D）	Overall Length（L）	Number of Flutes（F）
1.03.04D50L4F	1	3	4	50	4
1.54.04D50L4F	1.5	4	4	50	4
2.05.04D50L4F	2	5	4	50	4
2.56.04D50L4F	2.5	6	4	50	4
3.08.04D50L4F	3	8	4	50	4
393D50L4F	3	9	3	50	4
3.0103D75L4	3	10	3	75	4
3.0123D1004F	3	12	3	100	4
3.59.04D50L4F	3.5	9	4	50	4
4.0104D50L4F	4	10	4	50	4
4.0164D75L4F	4	16	4	75	4
4.0204D100L4F	4	20	4	100	4
5.0136D50L4F	5	13	5	50	4
5135D50L4F	5	13	5	50	4
5205D75L4F	5	20	5	75	4
5255D100L4F	5	25	5	100	4
6.0156D50L4F	6	15	6	50	4
6.01850*4F Blade length18	6	18	6	50	4
6.0246D75L4F	6	24	6	75	4
6.0306D100L4F	6	30	6	100	4
6456D150L4F	6	45	6	150	4
7208D60L4F	7	20	8	60	4
8208D60L4F	8	20	8	60	4
8.02460*4FBlade length24	8	24	8	60	4
8258D75L4F	8	25	8	75	4
8358D100L4F	8	35	8	100	4
8508150L4F	8	50	8	150	4
92510D75L4F	9	25	10	75	4
102510D75L4F	10	25	10	75	4
103010D75L4F Blade length30	10	30	10	75	4
104010D100L4F	10	40	10	100	4
105510D1504F	10	55	10	150	4
113012D75L4F	11	30	12	75	4
123012D75L4F	12	30	12	75	4
123575*4F Blade length35	12	35	12	75	4
124512D100L4F	12	45	12	100	4
125512D1504F	12	55	12	150	4
134014D1004F	13	40	14	100	4
144514D100L4F	14	45	14	100	4
147514D1504F	14	75	14	150	4
154516D1004F	15	45	46	100	4
164516D100L4F	16	45	16	100	4
167516D1504F	16	75	16	150	4
184518D100L4F	18	45	18	100	4
187518D1504F	18	75	18	150	4
204520D100L4F	20	45	20	100	4
207520D1504F	20	75	20	150	4
