High Hardness Quenched Material Special 6-Flute Tungsten Steel End Mill, Alloy End Mill 8 for Finishing, 10 for High-Temperature Alloys, Extended 12mm

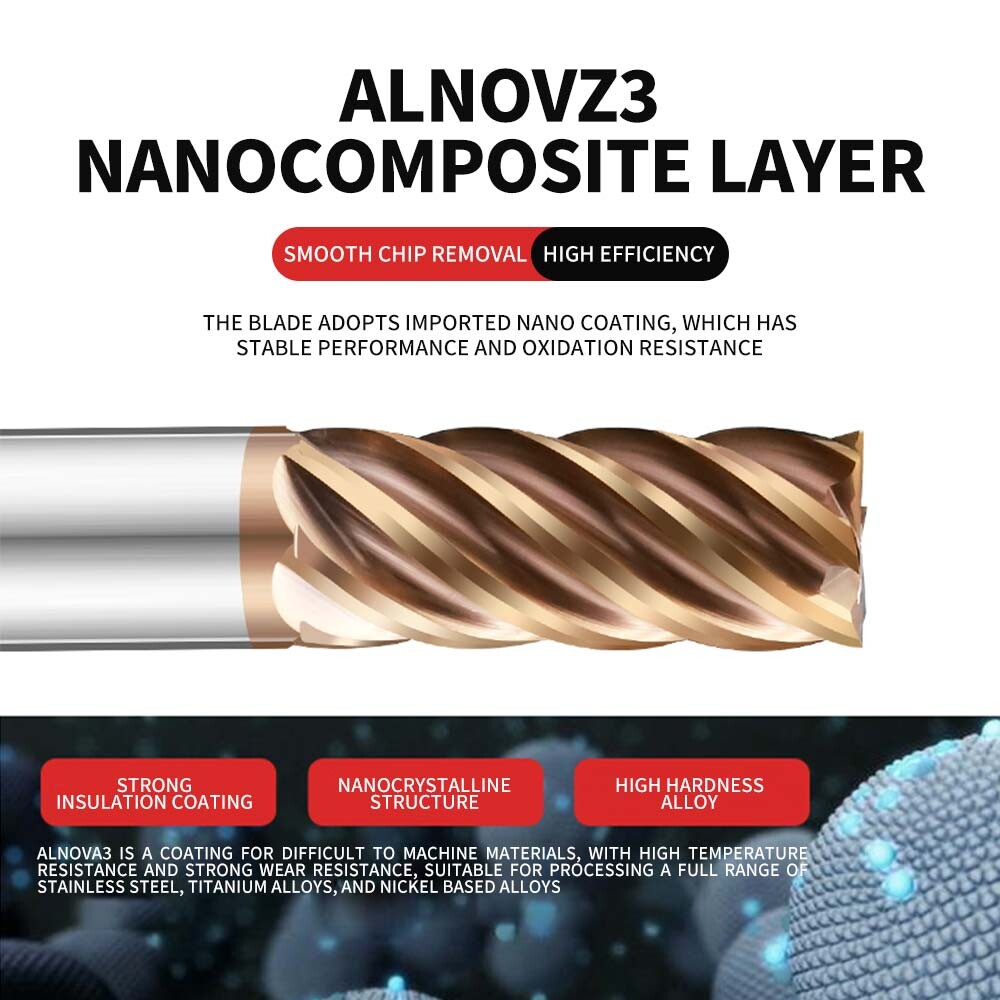

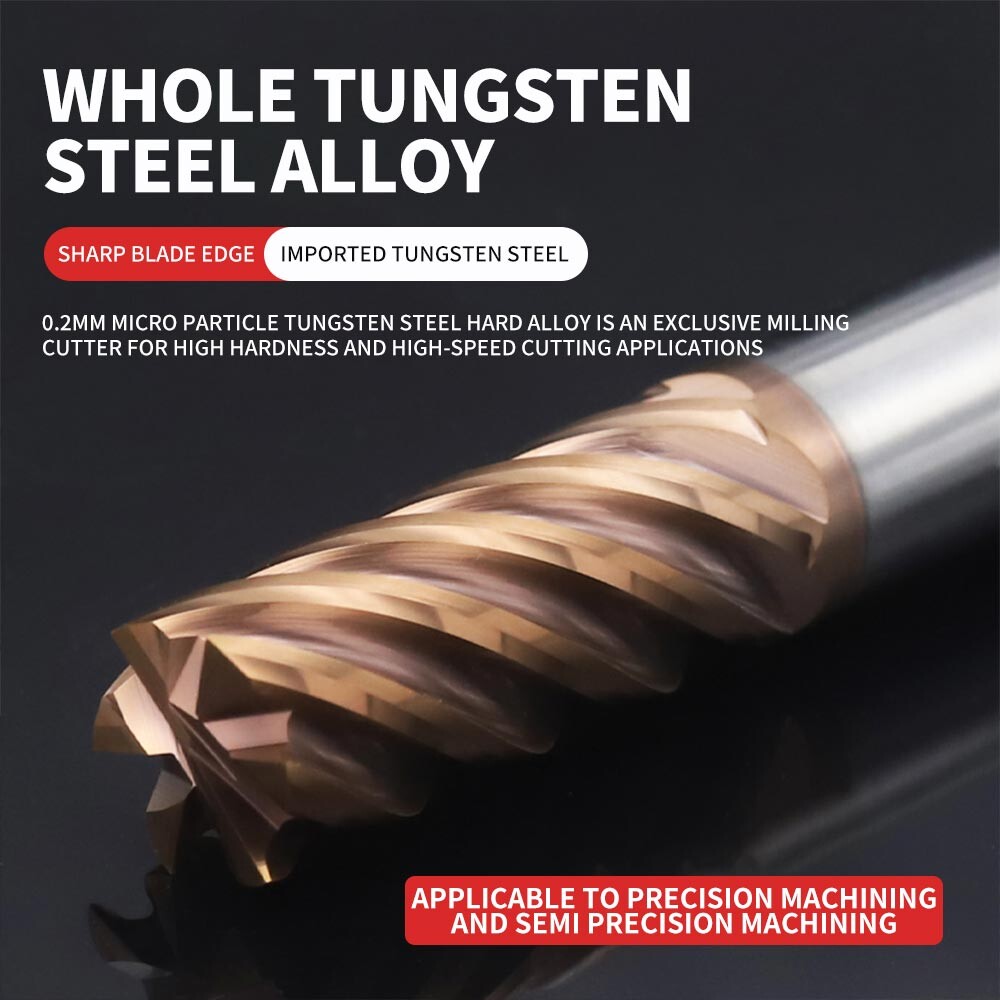

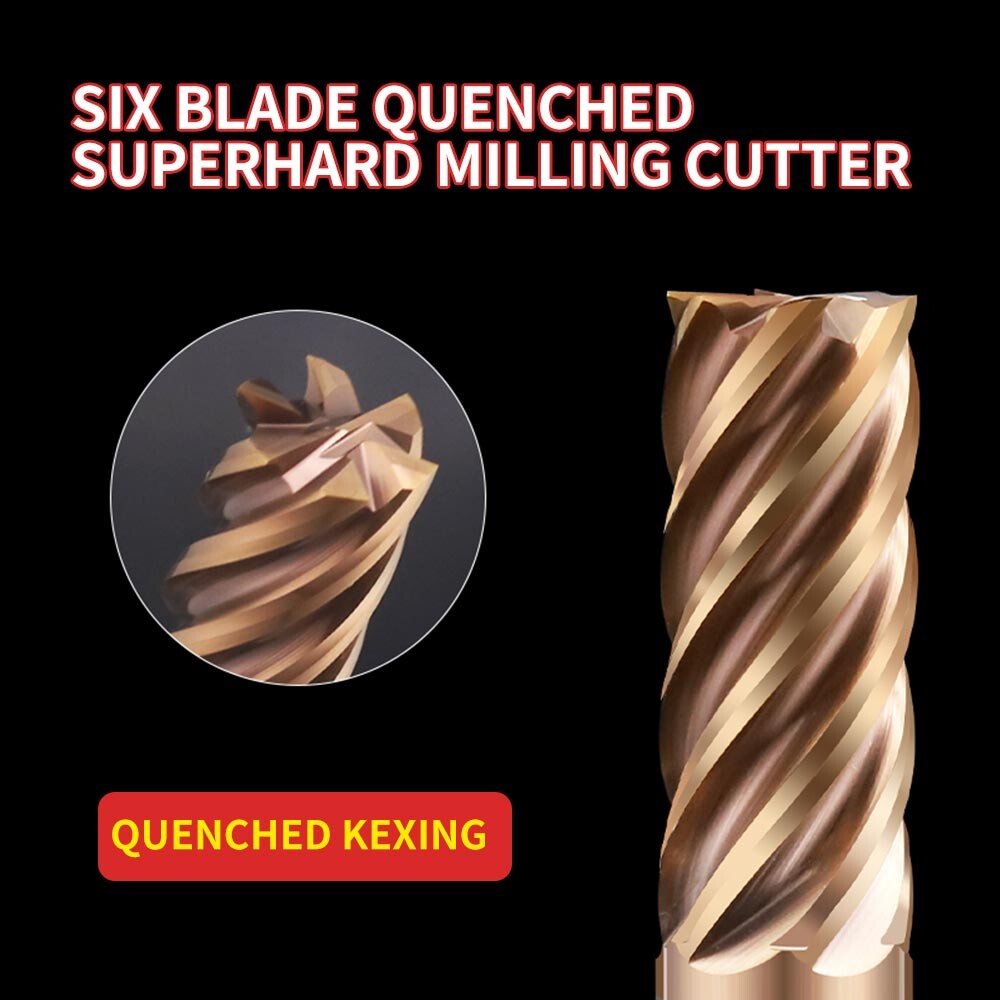

(Please contact me for more sizes) In response to the challenge of processing high-hardness quenched materials, this special milling cutter adopts a six-edge structure with a specification of 8mm and a 12mm extension design, making it suitable for finishing high-temperature alloys, etc. Requirements for difficult-to-machine materials. The cutting efficiency and accuracy of the milling cutter have been significantly improved, making it an ideal choice for processing high-hardness quenched materials.
Contact Us

Product Details


High Hardness Quenched Material Special 6-Flute Tungsten Steel End Mill, Alloy End Mill 8 for Finishing, 10 for High-Temperature Alloys, Extended 12mm

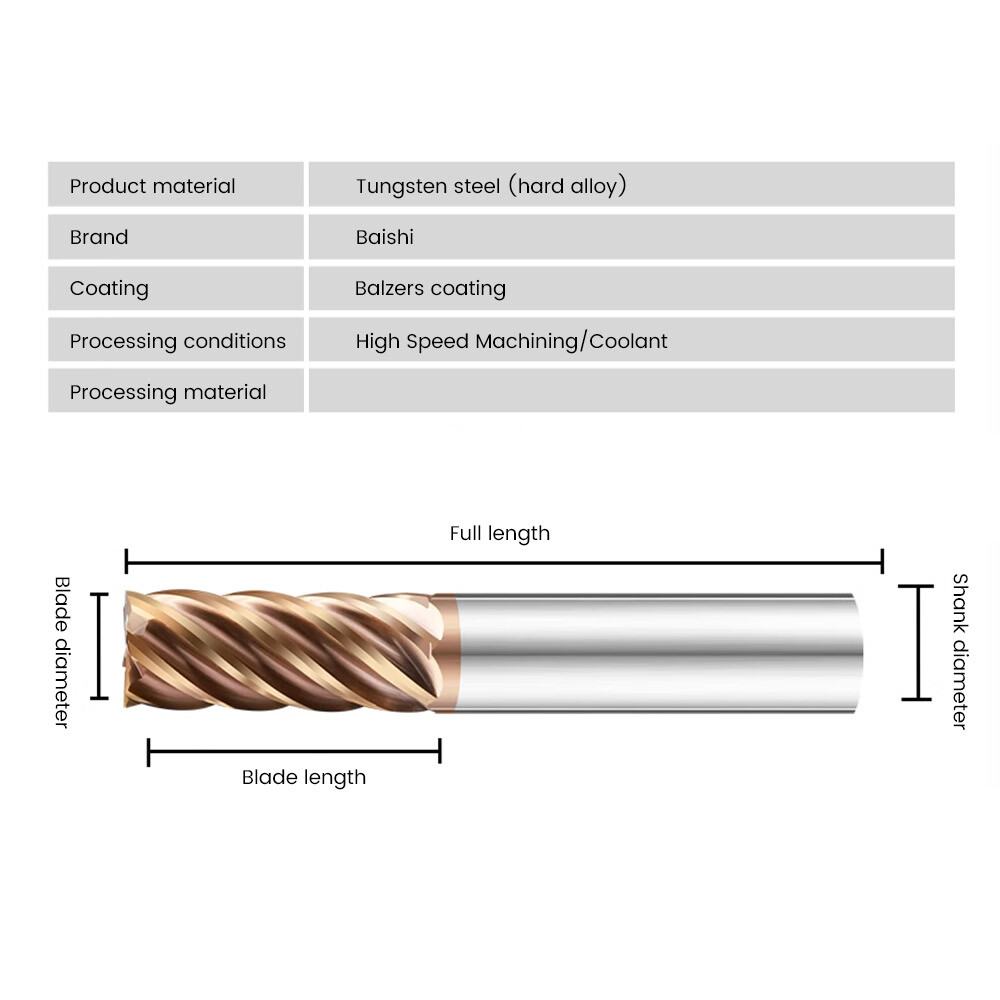

End Mill Specifications（d/mm）Blade Diameter

Blade

Length

Shank Diameter（D）Overall Length（L）Number of Flutes（F）
1*3.0*D4*50L*4F134504
1.5*4*D4*50L*4F1.544504
2*5*D4*50L*4F254504
2.5*6*D4*50L*4F2.564504
3*8*D4*50L*4F384504
3.5*9*D4*50L*4F3.594504
4.0*10*4D*50L*4F4104504
4*16*D4*75L*4F4164754
4*20*D4*100L*4F42041004
5.0*13*6D*50L*4F5136504
6.0*15*6D*50L*6F6156506
6*25*D6*75L*6F6256756
6.0*15*6D*50L*6F6156506
6*25*D6*75L*6F6256756
6*30*D6*100L*6F63061006
8*20*8D*60L*6F8208606
8*25*D8*75L*6F8258756
8*35*D8*100L*6F83581006
10*25*10D*75L*6F102510756
10*40*D10*100L*6F1040101006
12*30*12D*75L*6F123012756
12*35*12D*75L*6F123512756
12*45*D12*100L*6F1245121006
The following are hardened round nose knives:
End Mill Specifications（d/mm）Cutting DiameterCutting LengthShank Diameter（D）Overall Length（L）Number of Flutes（F）
Φ1*R0.2*3*4D*50L10.23450
Φ1.5*R0.2*4*4D*50L1.50.24450
Φ2*R0.2*5*4D*50L20.25450
Φ2*R0.5*5*4D*50L20.55450
Φ2.5*R0.2*8*4D*50L2.50.28450
Φ2.5*R0.5*8*4D*50L2.50.58450
Φ3*R0.2*8*4D*50L30.28450
Φ3*R0.5*8*4D*50L30.58450
Φ3.5*R0.2*8*4D*50L3.50.28450
Φ3.5*R0.5*8*4D*50L3.50.58450
Φ4*R0.2*10*4D*50L40.210450
Φ4*R0.2*10*4D*50L40.210450
Φ4*R0.5*10*4D*50L40.510450
Φ6*R0.2*15*6D*5060.215650
Φ6*R0.5*15*6D*50L60.515650
Φ6*R1.0*15*6D*50L61.0 15650
Φ8*R0.2*20*8D*60L80.220860
Φ8*R0.5*20*8D*60L80.520860
Φ8*R1.0*20*8D*60L81.0 20860
Φ10*R0.5*25*10D*75L100.5251075
Φ10*R1.0*25*10D*75L101.0 251075
Φ12*R0.5*30*12D*75L120.5301275
Φ12*R1.0*30*12D*75L121.0 301275
