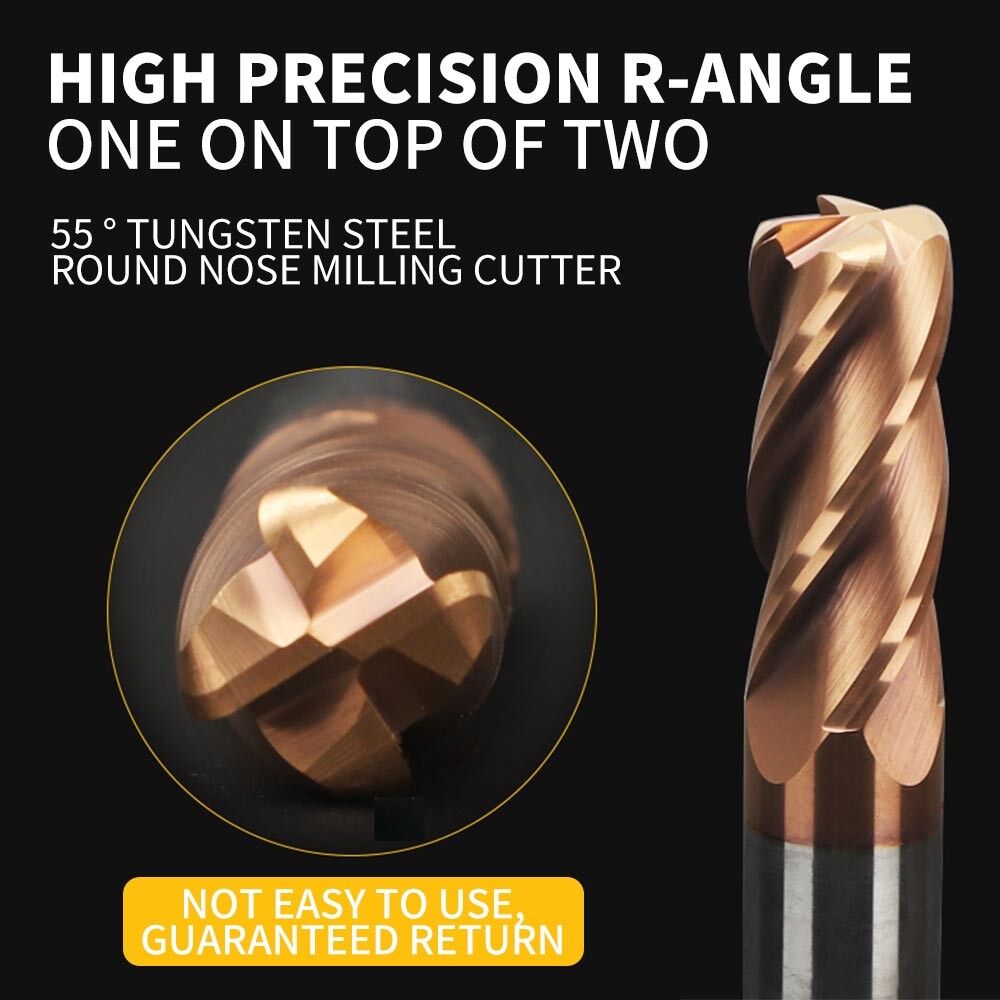

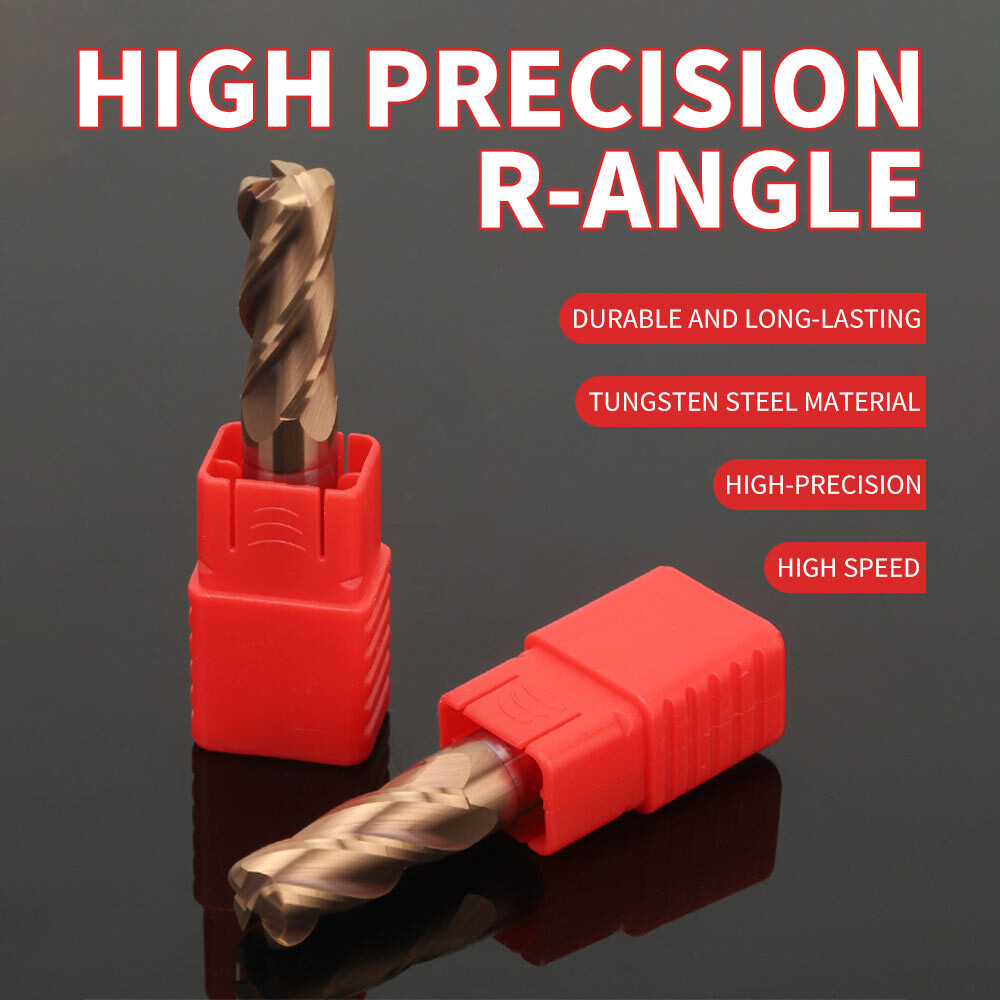

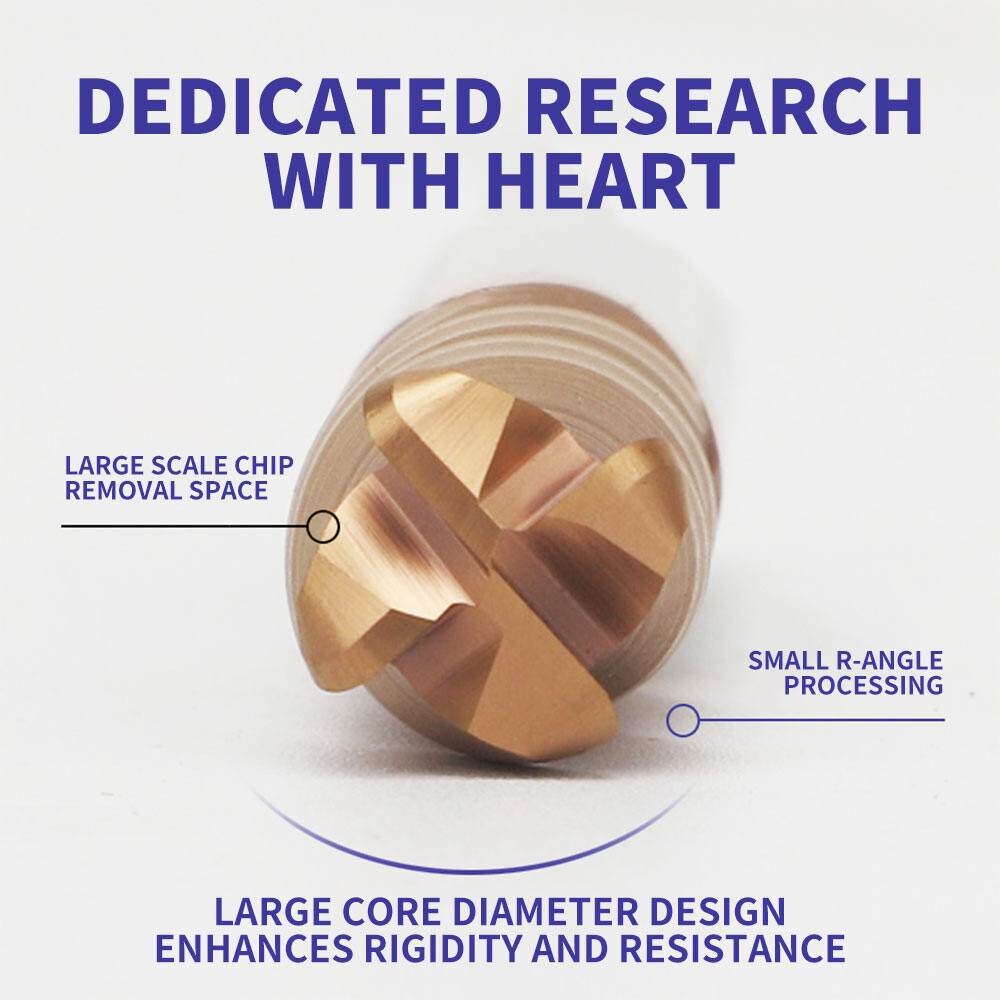

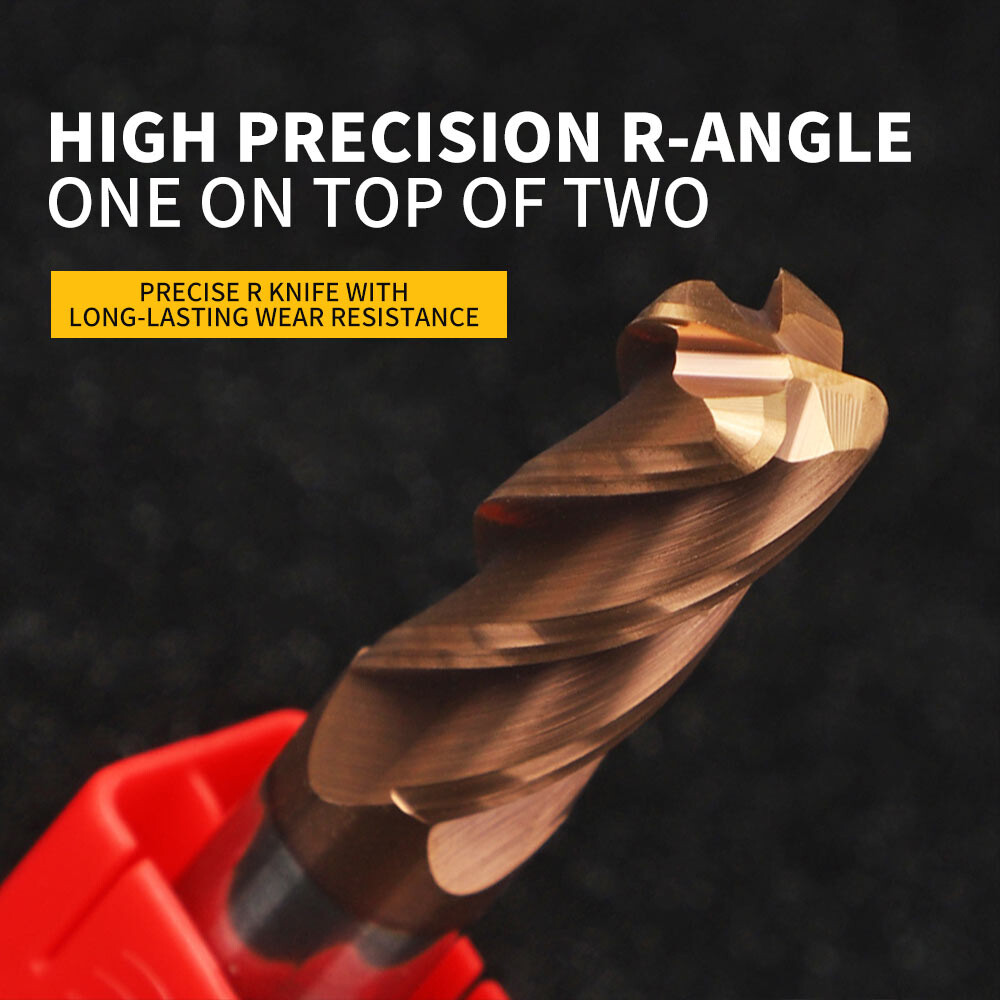

55° Tungsten Steel Alloy End Mill, 4-Flute, Extended, Bullnose Round Nose End Mill, Carbide Coated, D6R0.5, End Mill

(Please contact me for more sizes) The 55-degree tungsten steel alloy milling cutter has four blades, is designed in an elongated bull nose or round nose shape, is made of carbide material, and is coated with a special coating. layer, which can improve its cutting ability and durability, and the dimensions are accurate to an arc of 6 mm in diameter and 0.5 mm in radius.

Product Details

55° Tungsten Steel Alloy End Mill, 4-Flute, Extended, Bullnose Round Nose End Mill, Carbide Coated, D6R0.5, End Mill

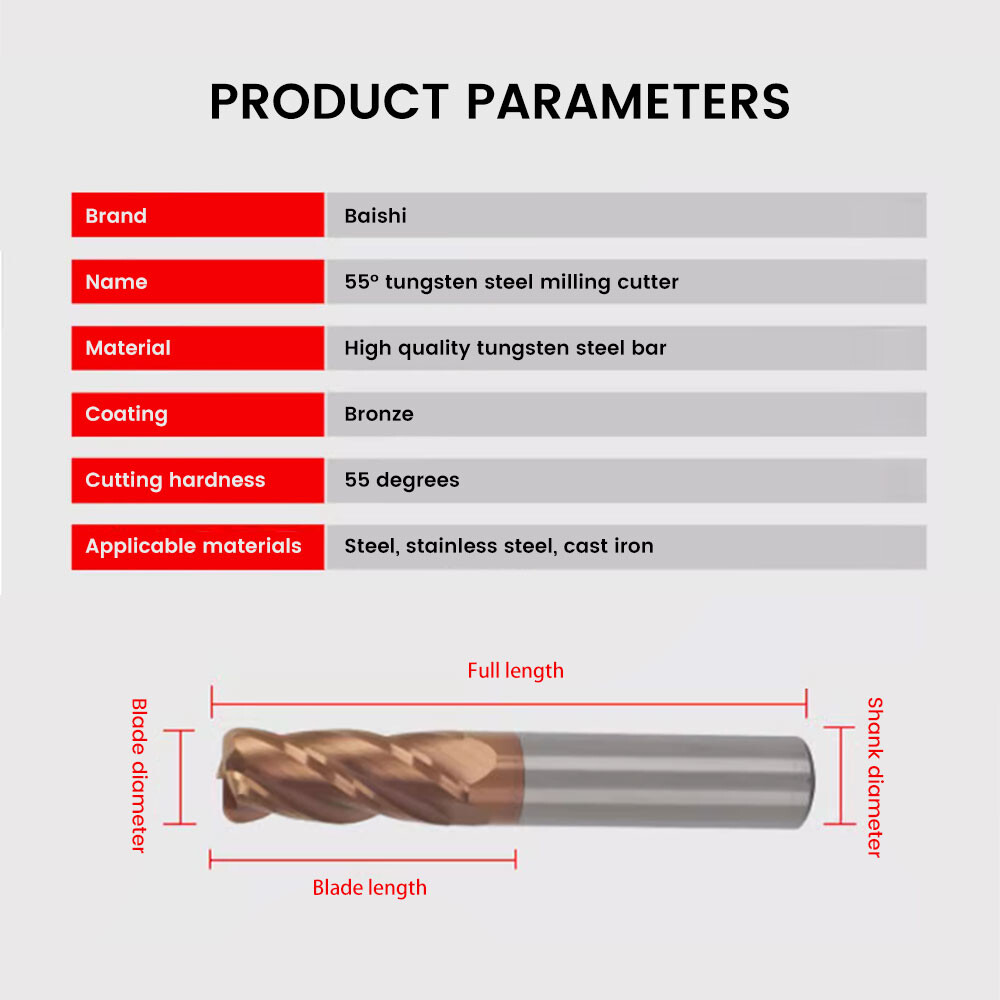

Specification（d/mm）	Blade Diameter（Φ）	RRR Angle	Blade Length（H）	Shank Diamet	Overall Length(L)
Φ1R0.234D50L	1	R0.2	3	4	50
Φ1.5R0.244D50L	1.5	R0.2	4	4	50
Φ2R0.254D50L	2	R0.2	5	4	50
Φ2R0.554D50L	2	R0.5	5	4	50
Φ2.5R0.274D50	2.5	R0.2	7	4	50
Φ2.5R0.574D50	2.5	R0.5	7	4	50
Φ3R0.284D50L	3	R0.2	8	4	50
Φ3R0.584D50L	3	R0.5	8	4	50
Φ4R0.2104D50L	4	R0.2	10	4	50
Φ4R0.5104D50L	4	R0.5	10	4	50
Φ4R1.0104D50L	4	R1	10	4	50
Φ5R0.5135D50L	5	R0.5	13	5	50
Φ5R1135D50L	5	R1	13	5	50
Φ5R0.5136D50L	5	R0.5	13	6	50
Φ5R1.0136D50L	5	R1	13	6	50
6R0.2156D50	6	R0.2	15	6	50
Φ6R0.5156D50L	6	R0.5	15	6	50
Φ6R1.0156D50L	6	R1	15	6	50
Φ6R2156D*50L	6	R2	15	6	50
Φ8R0.2208D60L	8	R0.2	20	8	60
Φ8R0.5208D60L	8	R0.5	20	8	60
Φ8R1.0208D60L	8	R1	20	8	60
Φ8R2.0208D60L	8	R2	20	8	60
Φ10R0.22510D75L	10	R0.2	25	10	75
Φ10R0.52510D75L	10	R0.5	25	10	75
Φ10R1.02510D75L	10	R1	25	10	75
Φ10R2.02510D75L	10	R2	25	10	75
Φ10R3.0251075	10	R3	25	10	75
Φ12R0.53012D75L	12	R0.5	30	12	75
Φ12R1.03012D75L	12	R1	30	12	75
Φ12R2.03012D75L	12	R2	30	12	75
Φ12R3.03012D75L	12	R3	30	12	75
Ф3R0.283D*50L	3	R0.2	8	3	50
Ф3R0.583D*50L	3	R0.5	8	3	50
Φ4.0R0.5164D*75	4	R0.5	16	4	75
Φ4.0R1.0164D*75	4	R1	16	4	75
Φ4R0.5204D*100	4	R0.5	20	4	100
Φ4R1.0204D*100	4	R1	20	4	100
Φ6.0R0.5206D*75	6	R0.5	20	6	75
Φ6.0R1.0206D*75	6	R1	20	6	75
Φ6R0.5306D*100	6	R0.5	30	6	100
Φ6R1.0306D*100	6	R1	30	6	100
Φ8R0.5208D*75	8	R0.5	20	8	75
Φ8R1.0208D*75	8	R1	20	8	75
Φ8R0.5358D*100	8	R0.5	35	8	100
Φ8R1.0358D*100	8	R1	35	8	100
Φ8R0.5508D*150	8	R0.5	50	8	150
Φ8R1.0508D*150	8	R1	50	8	150
Φ10R0.525D10*100	10	R0.5	25	10	100
Φ10R1.025D10*100	10	R1	25	10	100
Φ10R2.025D10*100	10	R2	25	10	100
Φ10R0.525D10*150	10	R0.5	25	10	150
Φ10R1.025D10*150	10	R1	25	10	150
Φ12R0.53012D*100	12	R0.5	30	12	100
Φ12R1.03012D*100	12	R1	30	12	100
Φ12R2.03012D*100	12	R2	30	12	100
Φ12R0.53012D*150	12	R0.5	30	12	150
Φ12R1.03012D*150	12	R1	30	12	150
Φ8R0.2308D*60	8	R0.2	30	8	60
Φ6R0.5456D*150	6	R0.5	45	6	150
Φ6R1456D*150	6	R1	45	6	150
Φ10R1.52510D*75	10	R1.5	25	10	75
Φ12R1.53012D*75	12	R1.5	30	12	75
