65° Tungsten Steel End Mill, 4-Flute Round Nose Cutter, CNC, Carbide Coated, Extended, Stainless Steel Special, Washable, Straight Shank End Mill

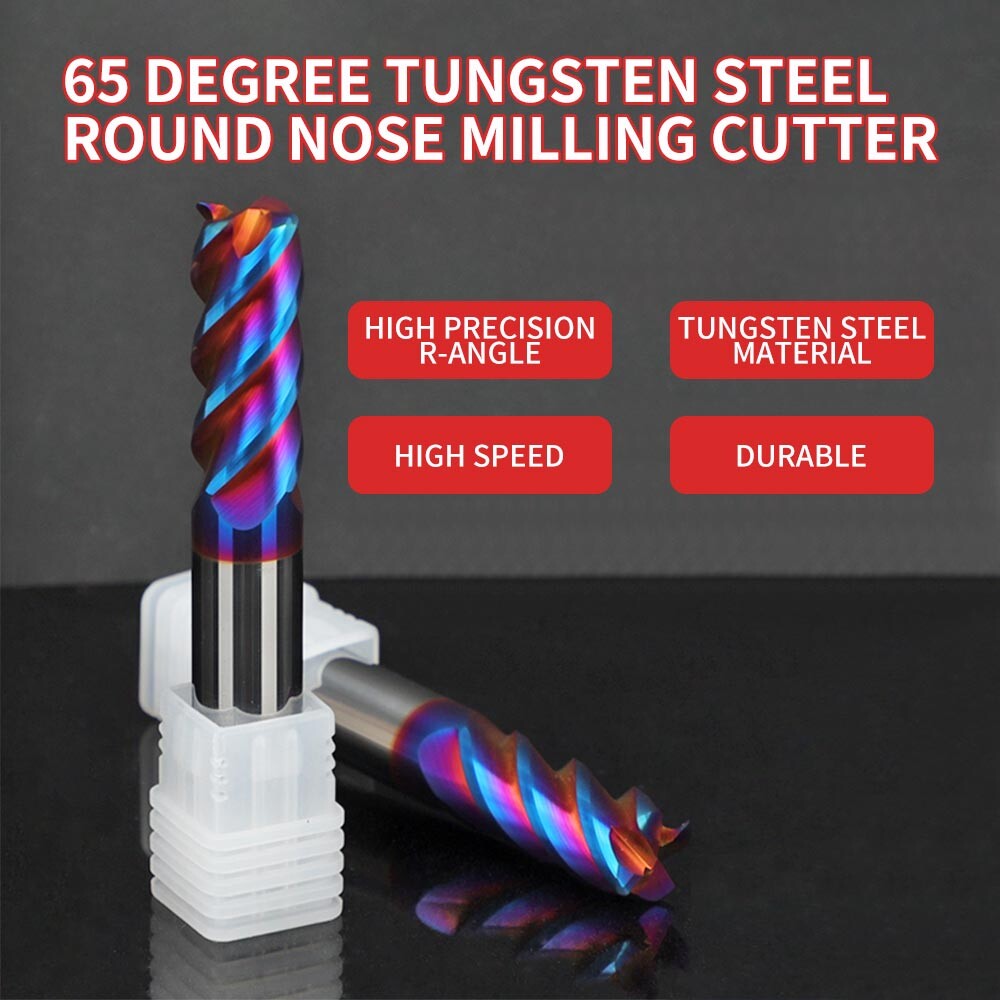

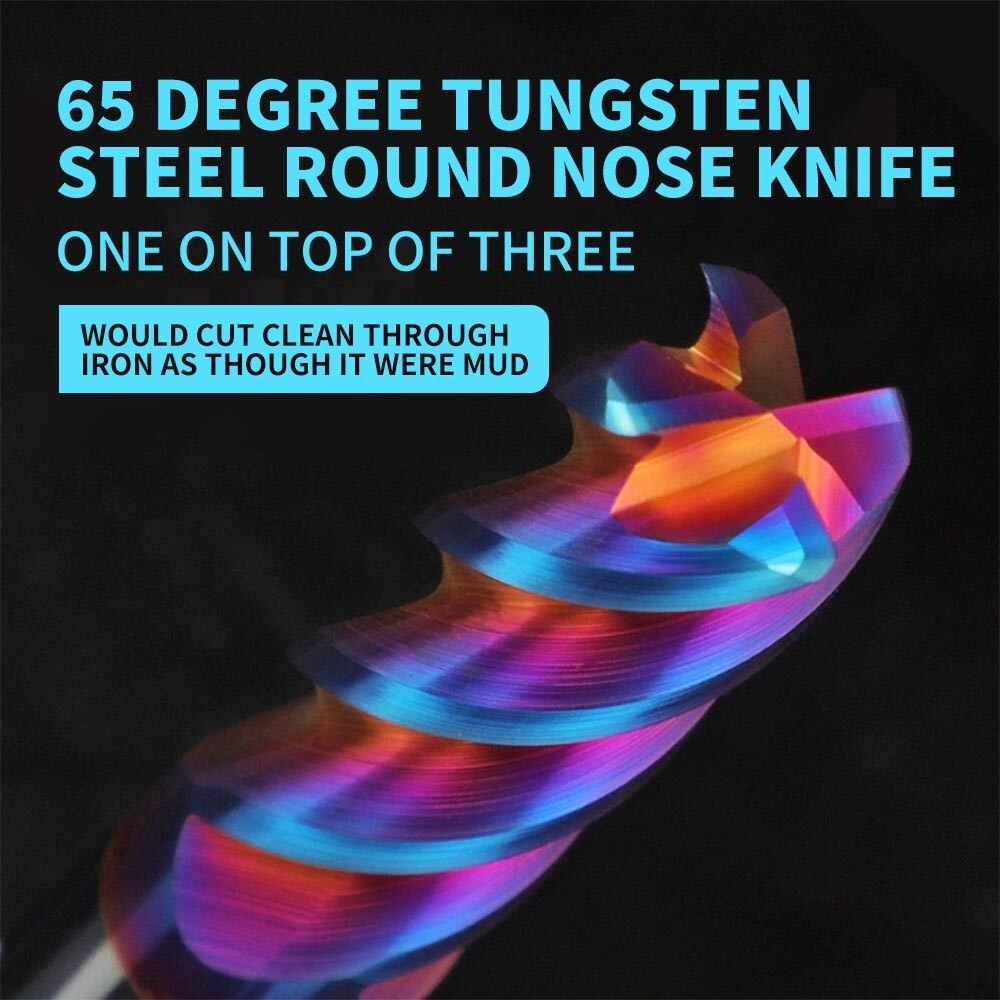

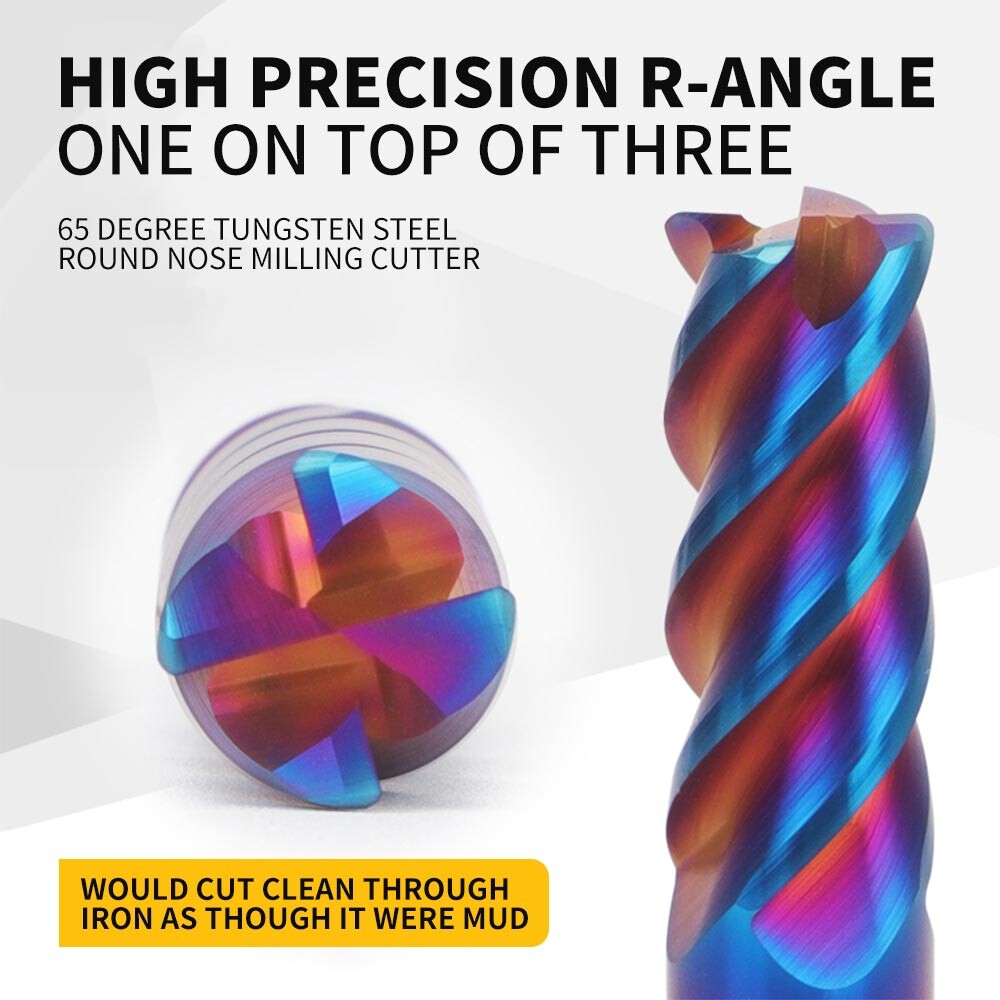

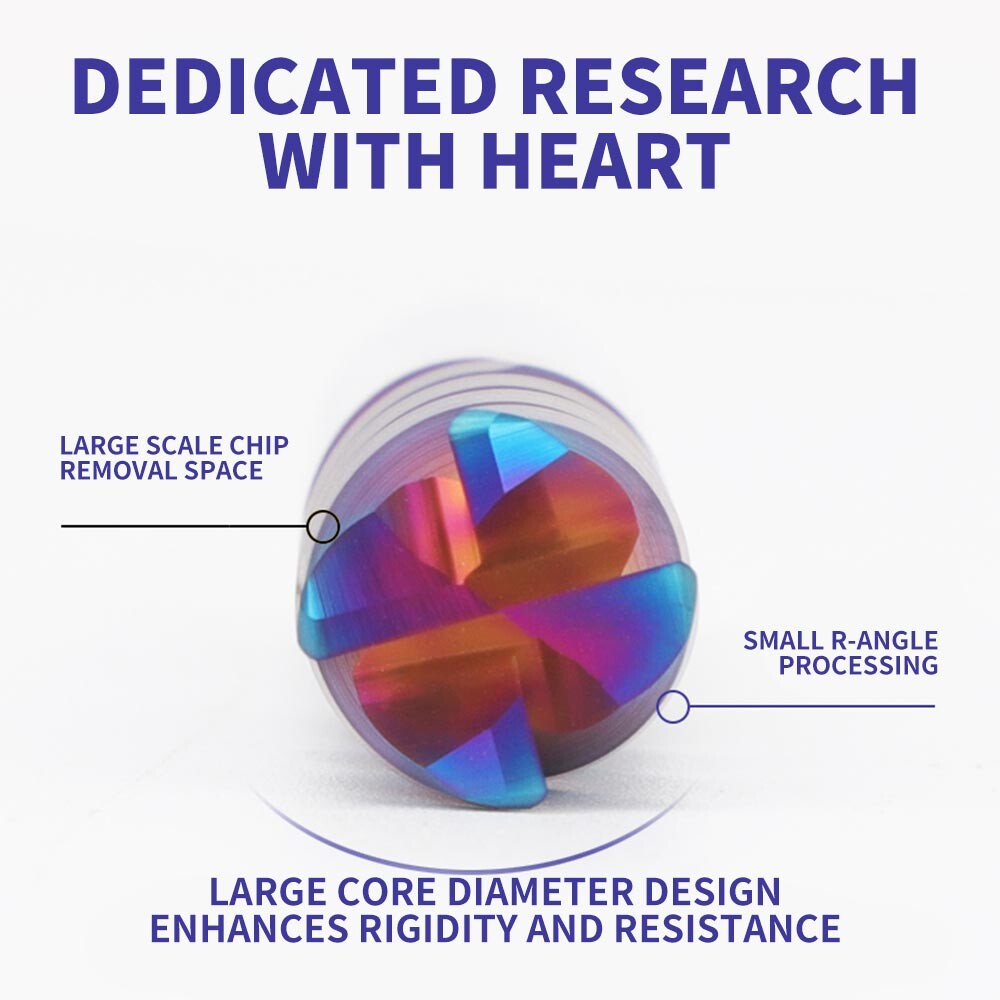

2. (Please contact me for more sizes) The 65-degree tungsten steel milling cutter also has four blades and a round nose shape, which is especially suitable for CNC machine tools. The material is carbide and is designed to be elongated. Efficiently machined stainless steel, straight handle design ensures stability when cleaning the tool.
Contact Us

Product Details


65° Tungsten Steel End Mill, 4-Flute Round Nose Cutter, CNC, Carbide Coated, Extended, Stainless Steel Special, Washable, Straight Shank End Mill
Specification（d/mm）Blade Diameter（Φ）RRR AngleBlade Length（H）Shank DiametOverall Length(L)
1R0.2*3*4D*50L1R0.23450
1.5R0.2*4*4D*50L1.5R0.24450
2R0.2*6*4D*50L2R0.26450
2R0.5*6*4D*50L2R0.56450
2.5R0.5*6*4D*50L2.5R0.56450
3R0.2*8*4D*50L3R0.28450
3R0.5*8*4D*50L3R0.58450
4R0.2*10*4D*50L4R0.210450
4R0.5*10*4D*50L4R0.510450
4R1.0*10*4D*504R110450
5R0.5*13*6D*50L5R0.513650
5R1.0*13*6D*50L5R113650
6R0.5*15*6D*50L6R0.515650
6R1.0*15*6D*50L6R115650
8R0.5*20*8D*60L8R0.520860
8R1.0*20*8D*60L8R120860
8R2.0*20*8D*60L8R220860
10R0.5*25*10D*75L10R0.5251075
10R1.0*25*10D*75L10R1251075
12R0.5*30*12D*75L12R0.5301275
12R1.0*30*12D*75L12R1301275
4.0R0.5*16*4D*75L4R0.516475
4.0R1.0*16*4D*75L4R116475
6.0R0.5*20*6D*75L6R0.520675
6.0R1.0*20*6D*75L6R120675
8.0R0.5*25*8D*75L8R0.525875
8.0R1.0*25*8D*75L8R125875
4R0.5*20*4D*100L4R0.5204100
4R1.0*20*4D*100L4R1204100
6R0.5*30*6D*100L6R0.5306100
6R1.0*30*6D*100L6R1306100
8R0.5*35*8D*100L8R0.5358100
8R1.0*35*8D*100L8R1358100
10R0.5*40*10D*100L10R0.54010100
12R0.5*45*12D*100L12R0.54512100
12R1.0*45*12D*100L12R14512100
6R0.2*15*6D*50L6R0.215650
10R2.0*25*10D*75L10R2251075
10R3.0*25*10D*75L10R3251075
12R2.0*30*12D*75L12R2301275
12R3.0*30*12D*75L12R3301275
3R0.2*3D*50LStraight handle3R0.2
3
3R0.5*3D*50LStraight handle3R0.5
3
10R0.5*55*10D*150L10R0.55510150
10R1*55*10D*150L10R15510150

FAQ

What are the models or versions of the product?
We offer multiple models and versions to meet the needs of different users.


What is the warranty policy for the product?
During the warranty period, if the product experiences non-human damage, we will provide free repair or replacement services.



How to install and use the product correctly?
The installation and use of the product are very simple. You can operate according to the instructions provided with the product.



Can I add my logo?
Yes ，We can also provide designs for free.


When can I get more information and quotes?
Normally, we will respond within 15 minutes of receiving the enquiry. You can also call us,write an email or whatsapp and so on to us directly to get the quick response.
