68 degree tungsten steel alloy R4 ball head ball milling cutter R3 stainless steel titanium alloy special R5 extended R6R1R2R1.5

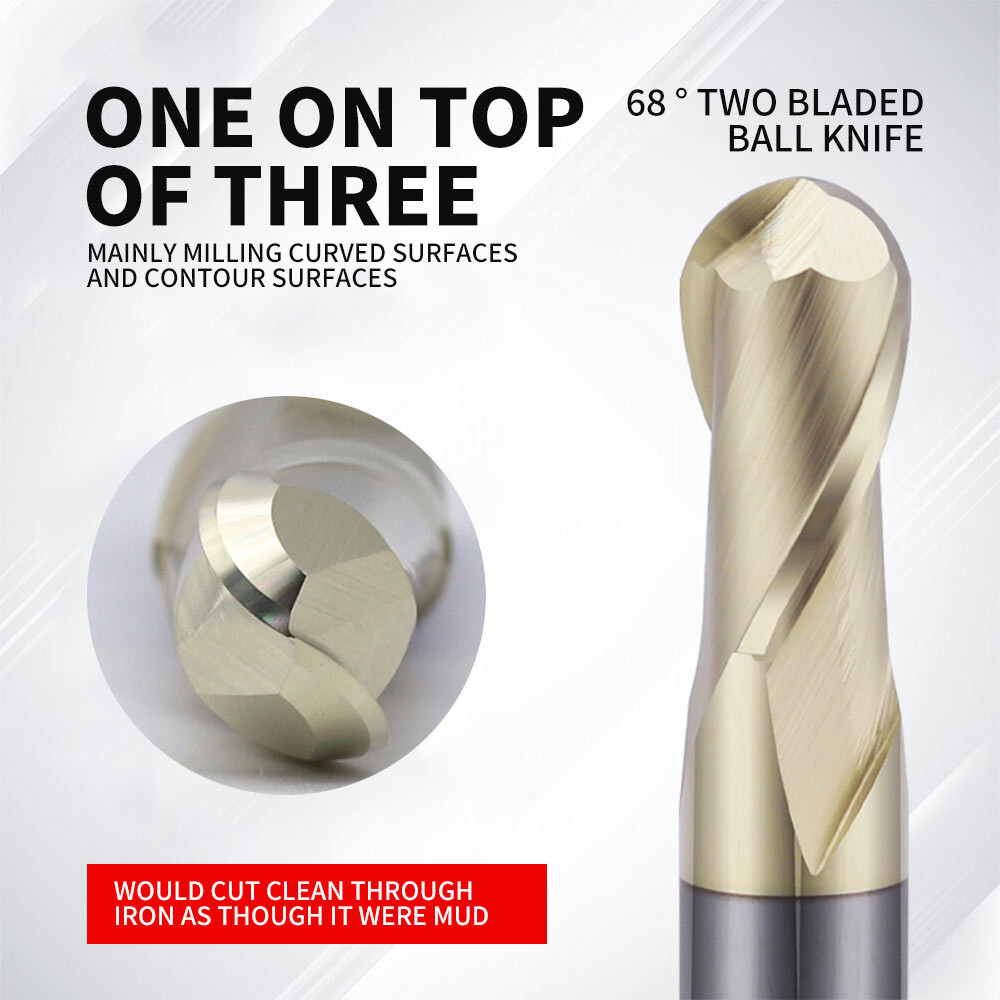

The 68-degree tungsten steel alloy ball end milling cutter series includes R4, R3, R5 and other specifications, specially designed for difficult-to-machine materials such as stainless steel and titanium alloys. The elongated design meets the needs of deep cavity processing, and provides a variety of radius options such as R6, R1, R1.5, R2, etc. to meet the requirements of complex curved surface processing. (please contact me for more sizes)

Product Details

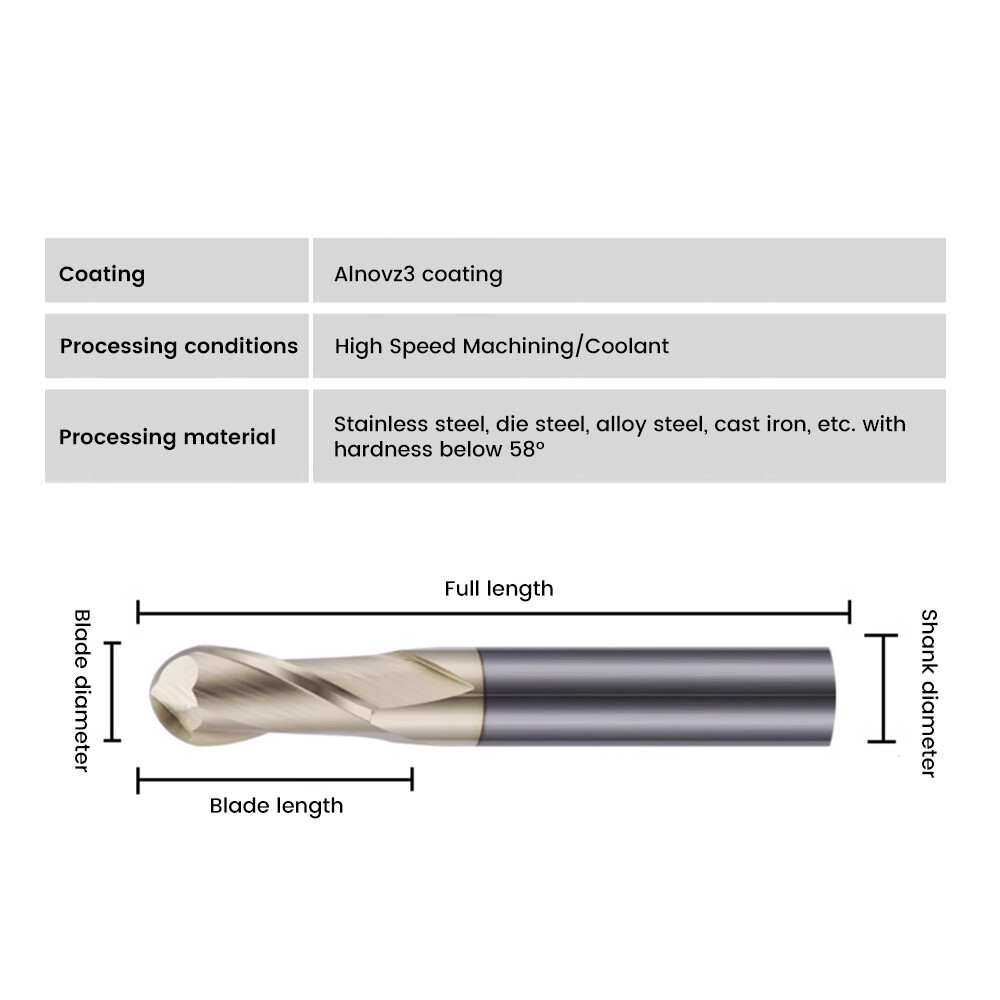

Product Specifications	Blade Radius (R)	Blade Length	Blade Diameter	Total Length (L)
R0.5x2x4x50L	0.5	2	4	50
R0.75x3x4x50L	0.75	3	4	50
R1x4x4x50L	1	4	4	50
R1.25x5x4x50L	1.25	5	4	50
R1.5x6x4x50L	1.5	6	4	50
R1.75x8x4x50L	1.75	8	4	50
R2.0x8x4x50L	2	8	4	50
R2.0x8x4x75L	2	8	4	75
R2.0x8x4x100L	2	8	4	100
R2.5x10x6x50L	2.5	10	6	50
R3.0x12x6x50L	3	12	6	50
R3.0x12x6x75L	3	12	6	75
R3.0x12x6x100L	3	12	6	100
R4.0x16x8x60L	4	16	8	60
R4.0x16x8x75L	4	16	8	75
R4.0x16x8x100L	4	16	8	100
R5.0x20x10x75L	5	20	10	75
R5.0x20x10x100L	5	20	10	100
R6.0x24x12x75L	6	24	12	75
R6.0x24x12x100L	6	24	12	100
R7.0x28x14x100L	7	28	14	100
R8.0x32x16x100L	8	32	16	100
R10.0x40x20x100L	10	40	20	100
R1.5x6x3x50L	1.5	6	3	50
R1.56D3*75L	1.5	6	3	75
R1.56D3*100L	1.5	6	3	100
R2.510D5*50L	2.5	10	5	50
R2.510D5*75L	2.5	10	5	75
R2.510D5*100L	2.5	10	5	100
R312D6*150L	3	12	6	150
R416D8*150L	4	16	8	150
R520D10*150L	5	20	10	150
R624D12*150L	6	24	12	150

FAQ

What are the models or versions of the product?
 We offer multiple models and versions to meet the needs of different users.

 What is the warranty policy for the product?
 During the warranty period, if the product experiences non-human damage, we will provide free repair or replacement services.

 How to install and use the product correctly?
 The installation and use of the product are very simple. You can operate according to the instructions provided with the product.

 Can I add my logo?
 Yes ，We can also provide designs for free.

 When can I get more information and quotes?
 Normally, we will respond within 15 minutes of receiving the enquiry. You can also call us,write an email or whatsapp and so on to us directly to get the quick response.
