Small aperture boring tool tungsten steel alloy inner hole tool MTR3 seismic 4R0.1 stainless steel 0.15 micro turning tool 0.2

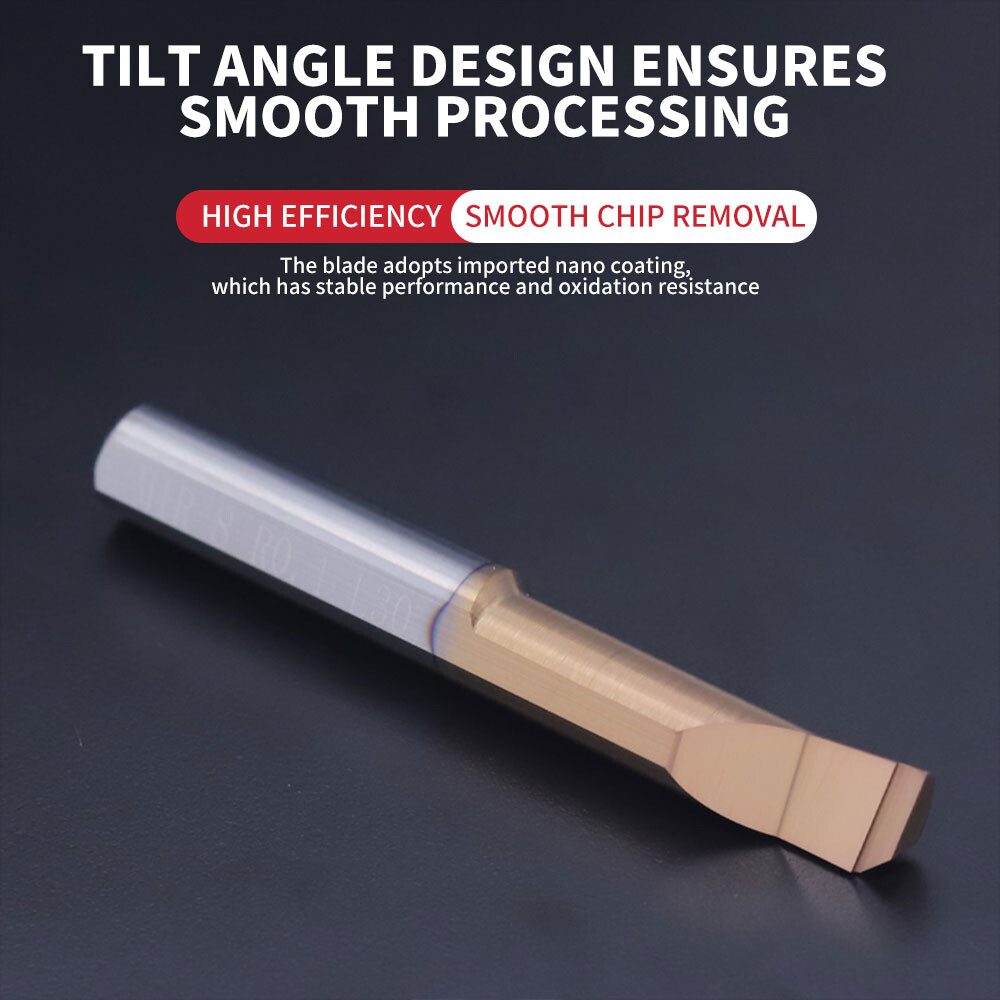

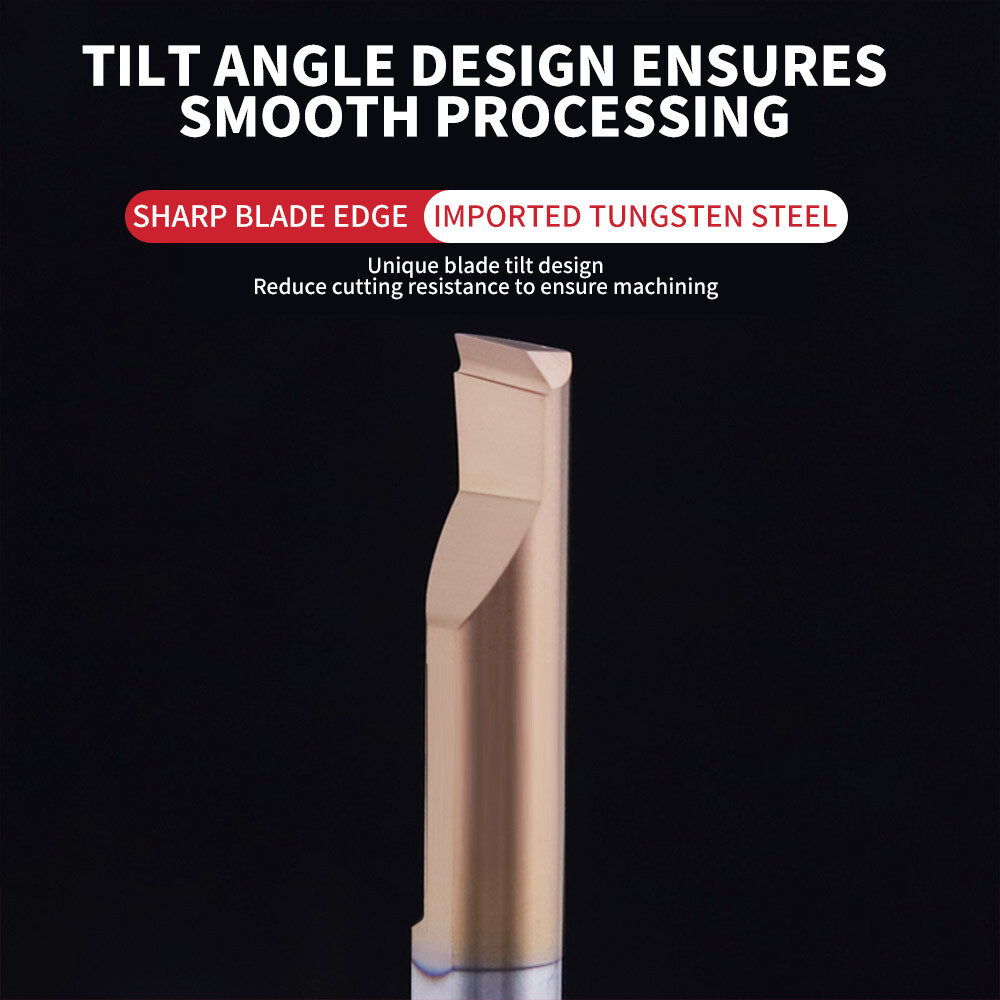

The small-diameter boring tool is made of tungsten steel alloy and is specially designed for inner hole processing. The model is MTR3. It has excellent shock resistance and is suitable for 4R0.1 precision processing requirements. It is especially suitable for stainless steel materials, with a processing depth of up to 0.15 mm. It can also be used as a micro turning tool, with a minimum processing size of 0.2 mm. (please contact me for more sizes)

Product Details

product specifications	Blade diameter (D)	R sharp R angle	Blade width mm	Cutting depth mm	Processing depth mm	Shank diameter (D)	Total length (L)
MTR 0.9 R0.05 L3-D4	0.9	R=0.05	0.8	0.5	3	4	50
MTR 1.0 R0.05 L3-D4	1	R=0.05	0.9	0.5	3	4	50
MTR 1.0 R0.05 L4-D4	1	R=0.05	0.9	0.5	4	4	50
MTR 1.2 R0.05 L4-D4	1.2	R=0.05	1.1	0.5	4	4	50
MTR 1.4 R0.05 L5-D4	1.4	R=0.05	1.3	0.5	5	4	50
MTR 1.5 R0.1 L6-D4	1.5	R0.1	1.4	0.5	6	4	50
MTR 1.6 R0.05 L6-D4	1.6	R=0.05	1.5	0.5	6	4	50
MTR 1.8 R0.1 L7-D4	1.8	R0.1	1.7	0.5	7	4	50
MTR 2 R0.1 L8-D4	2	R0.1	1.9	0.5	8	4	50
MTR 2 R0.1 L10-D3	2	R0.1	1.9	0.5	10	3	50
MTR 2 R0.15 L10-D3	2	R0.15	1.9	0.5	10	3	50
MTR 2R0.15 L10-D4	2	R0.15	1.9	0.5	10	4	50
MTR 2.3R0.1 L10-D4	2.3	R0.1	2.2	0.5	10	4	50
MTR 2.5R0.1 L10-D4	2.5	R0.1	2.4	0.5	10	4	50
MTR 2.5R0.15 L15-D4	2.5	R0.15	2.4	0.5	15	4	50
MTR 2.8R0.1 L12-D4	2.8	R0.1	2.8	0.5	12	4	50
MTR 3R0.1 L10-D3	3	R0.1	2.9	0.5	10	3	50
MTR 3R0.1 L12-D4	3	R0.1	2.6	0.5	12	4	50
MTR 3R0.1 L15-D3	3	R0.1	2.9	0.5	15	3	50
MTR 3R0.15 L10-D3	3	R0.15	2.85	0.5	10	3	50
MTR 3R0.15 L15-D3	3	R0.15	2.85	0.5	15	3	50
MTR 3R0.15 L15-D4	3	R0.15	2.85	0.5	15	4	50
MTR 3R0.2 L10-D3	3	R0.2	2.85	0.5	10	3	50
MTR 3R0.2 L15-D3	3	R0.2	2.85	0.5	15	3	50
MTR 3R0.4 L10-D3	3	R.04	2.85	0.5	10	3	50
MTR3.5R0.15L15D4	3.5	R0.15	3.5	0.5	15	4	50
MTR3.5R0.2L15D4	3.5	R0.2	3.5	0.5	15	4	50
MTR 4R0.1 L10-D4	4	R0.1	3.8	0.5	10	4	50
MTR 4R0.1 L15-D4	4	R0.1	3.8	0.5	15	4	50
MTR 4R0.1 L22-D4	4	R0.1	3.8	0.5	22	4	50
MTR 4R0.15L10D4	4	R0.15	3.8	0.5	15	4	50
MTR 4R0.15L15D4	4	R0.15	3.8	0.5	15	4	50
MTR 4R0.15L22D4	4	R0.15	3.8	0.5	22	4	50
MTR 4R0.2 L10-D4	4	R0.2	3.8	0.5	10	4	50
MTR 4R0.2 L15-D4	4	R0.2	3.8	0.5	15	4	50
MTR 4R0.2 L22-D4	4	R0.2	3.8	0.5	22	4	50
MTR 4R0.4 L15-D4	4	R.04	3.8	0.5	15	4	50
MTR 4.5R0.2L15D5	4.5	R0.2	4.4	0.5	15	5	50
MTR 4.5R0.2L22D5	4.5	R0.2	4.4	0.5	22	5	50
MTR 5R0.1 L15-D5	5	R0.1	4.8	0.5	15	5	50
MTR 5R0.1 L22-D5	5	R0.1	4.8	0.5	22	5	50
MTR 5R0.2 L10-D5	5	R0.2	4.8	0.5	10	5	50
MTR 5R0.15L20-D5	5	R0.15	4.8	0.5	20	5	50
MTR 5R0.2 L15-D5	5	R0.2	4.4	0.5	15	5	50
MTR 5R0.2 L20-D5	5	R0.2	4.8	0.5	20	5	50
MTR 5R0.2 L22-D5	5	R0.2	4.8	0.5	22	5	50
MTR 5R0.2 L25-D5	5	R0.2	4.8	0.8	25	5	50
MTR 5R0.2 L30-D5	5	R0.2	4.8	0.8	30	5	50
MTR 5R0.2 L35-D5	5	R0.2	4.8	0.8	35	5	60
MTR 5R0.4 L22-D5	5	R.04	4.8	0.5	22	5	50
MTR5.5R0.2L15D6	5.5	R0.2	5.5	0.5	15	6	50
MTR5.5R0.2L22D6	5.5	R0.2	5.5	0.5	22	6	50
MTR5.5R0.2L30D6	5.5	R0.2	5.5	0.8	30	6	60
MTR 6R0.1 L10-D6	6	R0.1	5.8	0.5	10	6	50
MTR 6R0.1 L15-D6	6	R0.1	5.8	0.5	15	6	50
MTR 6R0.1 L22-D6	6	R0.1	5.8	0.5	22	6	50
MTR 6R0.2 L10-D6	6	R0.2	5.8	0.5	10	6	50
MTR 6R0.2 L15-D6	6	R0.2	5.8	0.5	15	6	50
MTR 6R0.2 L22-D6	6	R0.2	5.8	0.5	22	6	50
MTR 6R0.2 L30-D6	6	R0.2	5.8	0.8	30	6	50
MTR 6R0.2 L35-D6	6	R0.2	5.8	0.8	35	6	50
MTR 6R0.4 L22-D6	6	R0.4	5.8	0.5	22	6	50
MTR6R0.2L40-D6*80L	6	R0.2	5.8	0.8	40	6	80
MTR6R0.2L40-D6*100L	6	R0.2	5.8	0.8	40	6	100
MTR 7R0.2L22-D7	7	R0.2	6.8	0.8	22	7	60
MTR 7R0.2L30-D7	7	R0.2	6.8	0.8	30	7	60
MTR 8R0.2L22-D8	8	R0.2	7.8	0.8	22	8	60
MTR 8R0.2L32-D8	8	R0.2	7.9	0.8	32	8	65
MTR 8R0.2L40-D8	8	R0.2	7.8	0.8	40	8	80
MTR 9R0.2L30-D9	9	R0.2	8.8	0.8	30	9	75
MTR10R0.2L35-D10	10	R0.2	9.8	0.8	35	10	75
