Tungsten steel integral coating alloy inner groove knife MGR4 micro small aperture 5mm cutting groove knife small diameter cutting groove knife 6mm-Changzhou Baishi Tool Manufacturing Co., Ltd



GET A QUOTE

PRODUCTS

Tungsten steel integral coating alloy inner groove knife MGR4 micro small aperture 5mm cutting groove knife small diameter cutting groove knife 6mm

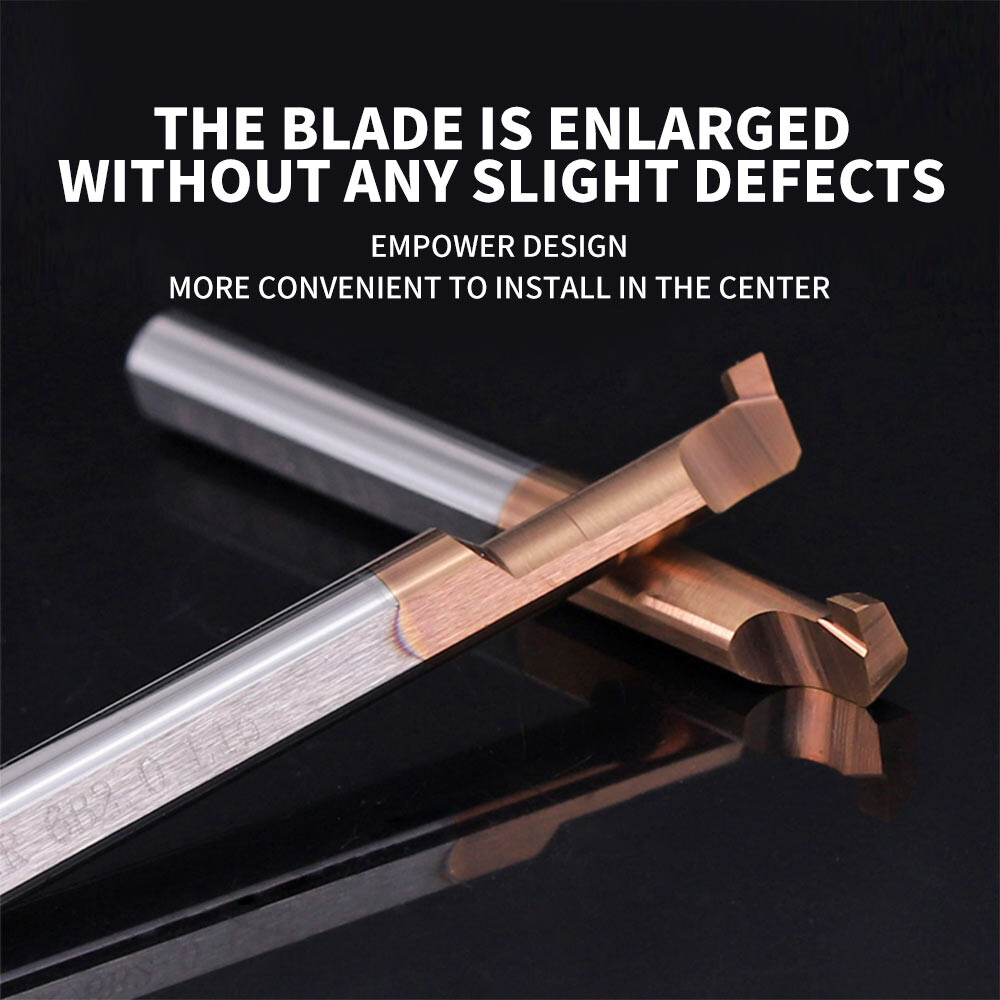

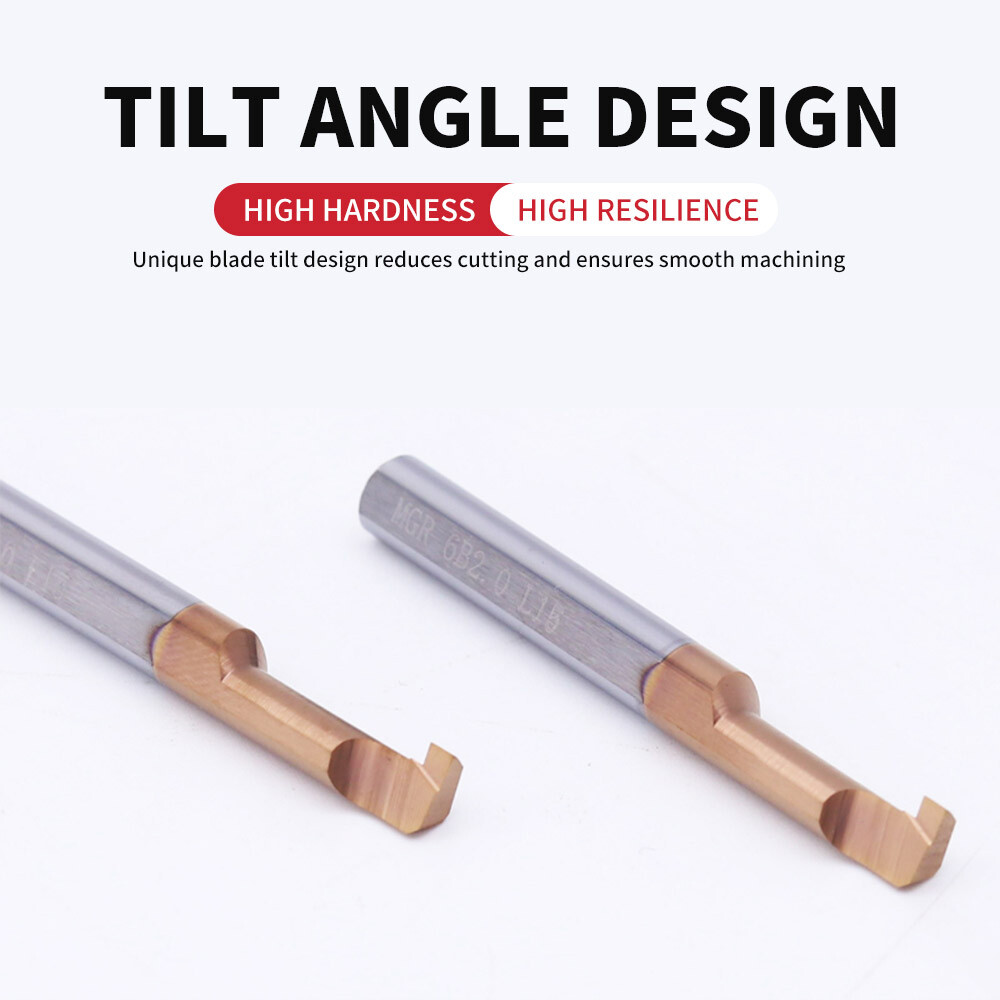

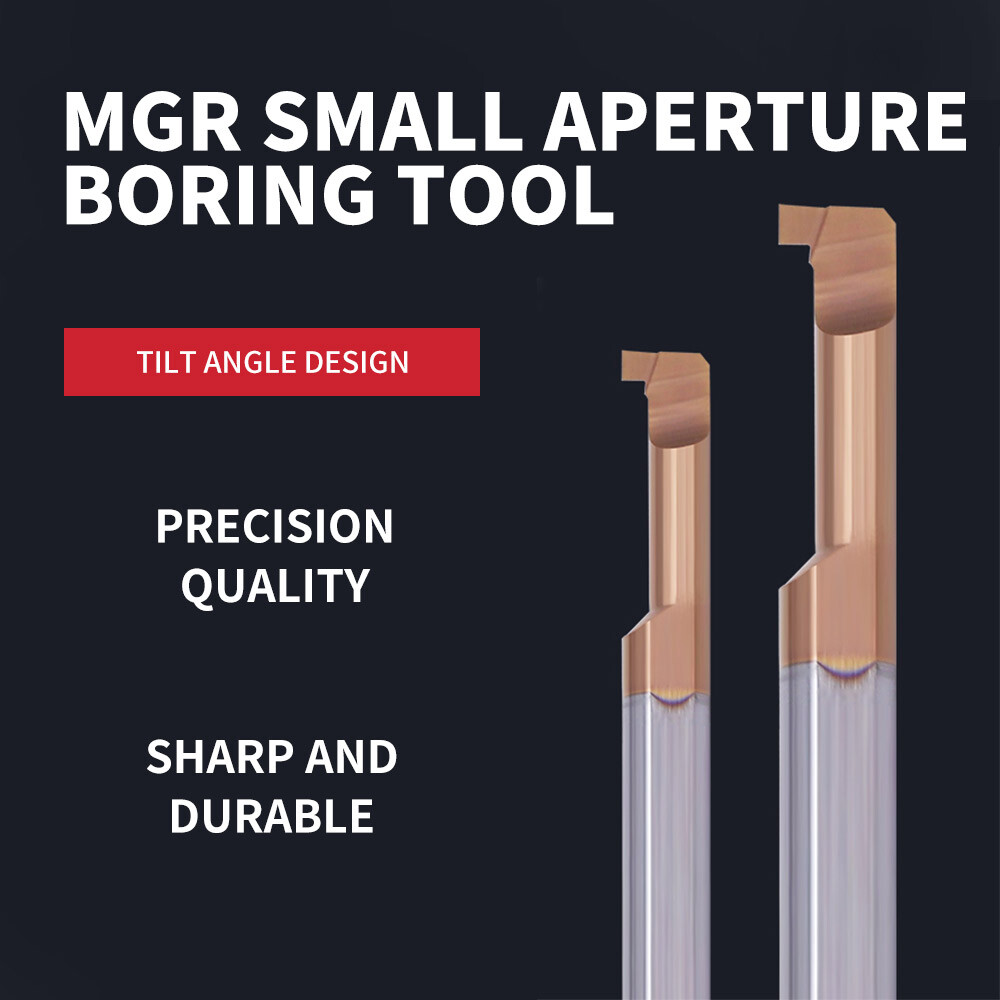

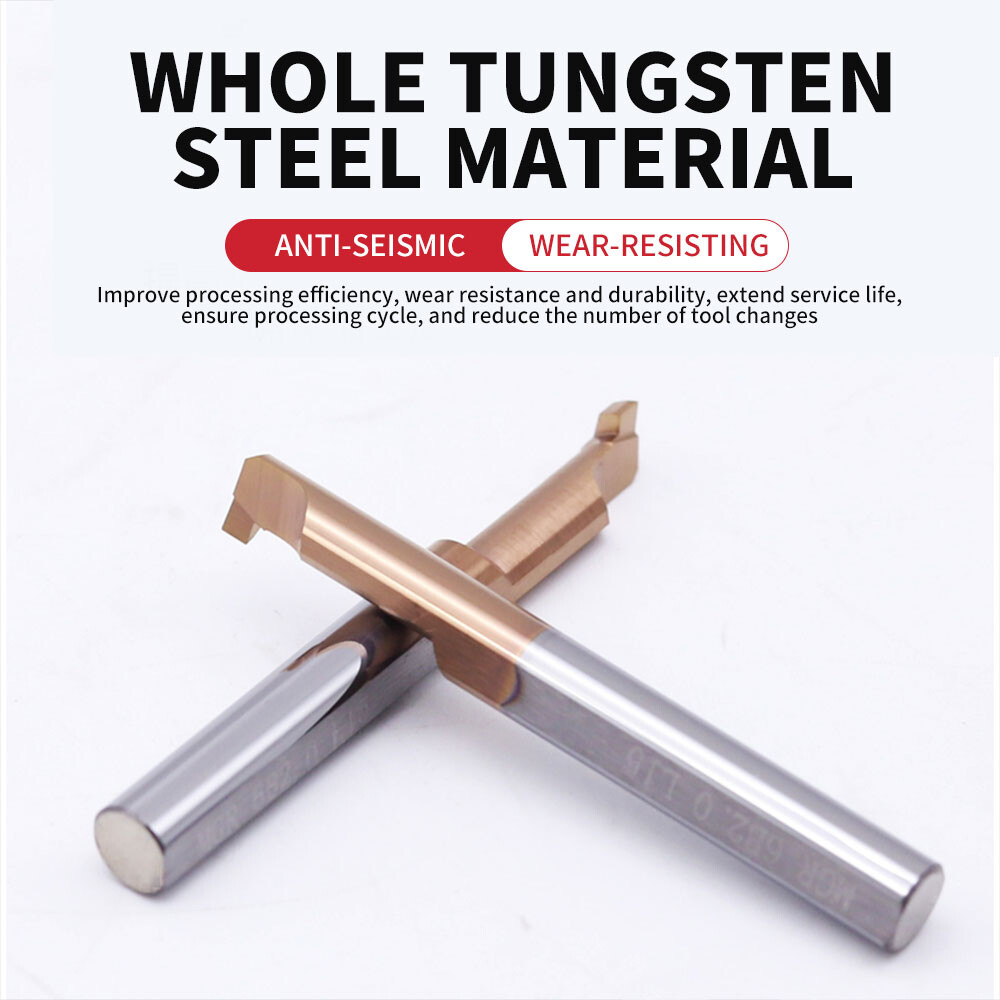

Tungsten steel integrally coated alloy internal groove cutter MGR4 is specially designed for micro-small apertures and can process apertures up to 5 mm. At the same time, a 6 mm specification grooving cutter is provided, which is suitable for small diameter grooving. The tool is made of high-performance tungsten steel alloy and is integrally coated to ensure machining accuracy and tool life. (please contact me for more sizes)

Product Details

product Specifications	Groove Width	Processing Depth (mm)	Cutting Depth	Handle Diameter (D)	Total length (L)

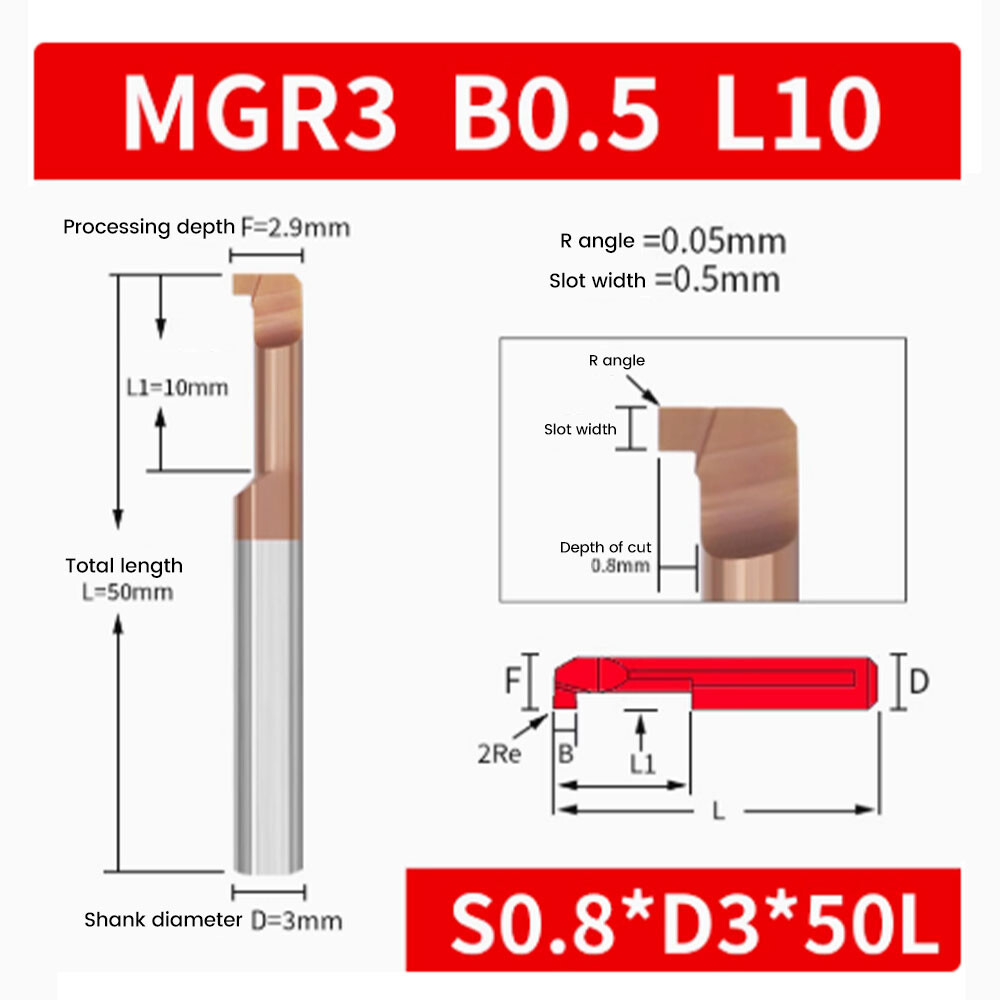

MGR3B0.5L10S0.8D3*50L	0.5	10	0.8	3	50
MGR3B0.7L10S0.8D3*50L	0.7	10	0.8	3	50
MGR3B1.0L10S0.8D3*50L	1	10	0.8	3	50
MGR3B1.5L10S0.8D3*50L	1.5	10	0.8	3	50
MGR4B0.5L10S1.0D4*50L	0.5	10	1	4	50
MGR4B0.7L10S1.0D4*50L	0.7	10	1	4	50
MGR4B1.0L10S1.0D4*50L	1	10	1	4	50
MGR4B1.0L15S1.0D4*50L	1	15	1	4	50
MGR4B1.5L10S1.0D4*50L	1.5	10	1	4	50
MGR4B1.5L15S1.0D4*50L	1.5	15	1	4	50
MGR4B2.0L10S1.0D4*50L	2	10	1	4	50
MGR4B2.0L15S1.0D4*50L	2	15	1	4	50
MGR5B1.0L10S1.2D5*50L	1	10	1.2	5	50
MGR5B1.0L15S1.2D5*50L	1	15	1.2	5	50
MGR5B1.0L22S1.2D5*50L	1	22	1.2	5	50
MGR5B1.5L10S1.2D5*50L	1.5	10	1.2	5	50
MGR5B1.5L15S1.2D5*50L	1.5	15	1.2	5	50
MGR5B1.5L22S1.2D5*50L	1.5	22	1.2	5	50
MGR5B2.0L10S1.2D5*50L	2	10	1.2	5	50
MGR5B2.0L15S1.2D5*50L	2	15	1.2	5	50
MGR5B2.0L22S1.2D5*50L	2	22	1.2	5	50
MGR6B1.0L10S1.5D6*50L	1	10	1.5	6	50
MGR6B1.0L15S1.5D6*50L	1	15	1.5	6	50
MGR6B1.0L22S1.5D6*50L	1	22	1.5	6	50
MGR6B1.5L10S1.5D6*50L	1.5	10	1.5	6	50
MGR6B1.5L15S1.5D6*50L	1.5	15	1.5	6	50
MGR6B1.5L22S1.5D6*50L	1.5	22	1.5	6	50
MGR6B2.0L10S1.5D6*50L	2	10	1.5	6	50
MGR6B2.0L15S1.5D6*50L	2	15	1.5	6	50
MGR6B2.0L22S1.5D6*50L	2	22	1.5	6	50
MGR6B2.5L10S1.5D6*50L	2.5	10	1.5	6	50
MGR6B2.5L15S1.5D6*50L	2.5	15	1.5	6	50
MGR6B2.5L22S1.5D6*50L	2.5	22	1.5	6	50
MGR6B3.0L10S1.5D6*50L	3	10	1.5	6	50
MGR6B3.0L15S1.5D6*50L	3	15	1.5	6	50
MGR6B3.0L22S1.5D6*50L	3	22	1.5	6	50
MGR8B1.0L22S1.8D8*50L	1	22	1.8	8	50
MGR8B1.5L22S2.0D8*50L	1.5	22	2	8	50
MGR8B2.0L22S2.2D8*60L	2	22	2.2	8	60
MGR8B2.5L22S2.6D8*50L	2.5	22	2.6	8	50
MGR8B3.0L22S2.6D8*50L	3	22	2.6	8	50

FAQ

What are the models or versions of the product?
 We offer multiple models and versions to meet the needs of different users.

 What is the warranty policy for the product?
 During the warranty period, if the product experiences non-human damage, we will provide free repair or replacement services.

 How to install and use the product correctly?
 The installation and use of the product are very simple. You can operate according to the instructions provided with the product.

 Can I add my logo?
 Yes ，We can also provide designs for free.

 When can I get more information and quotes?
 Normally, we will respond within 15 minutes of receiving the enquiry. You can also call us,write an email or whatsapp and so on to us directly to get the quick response.
