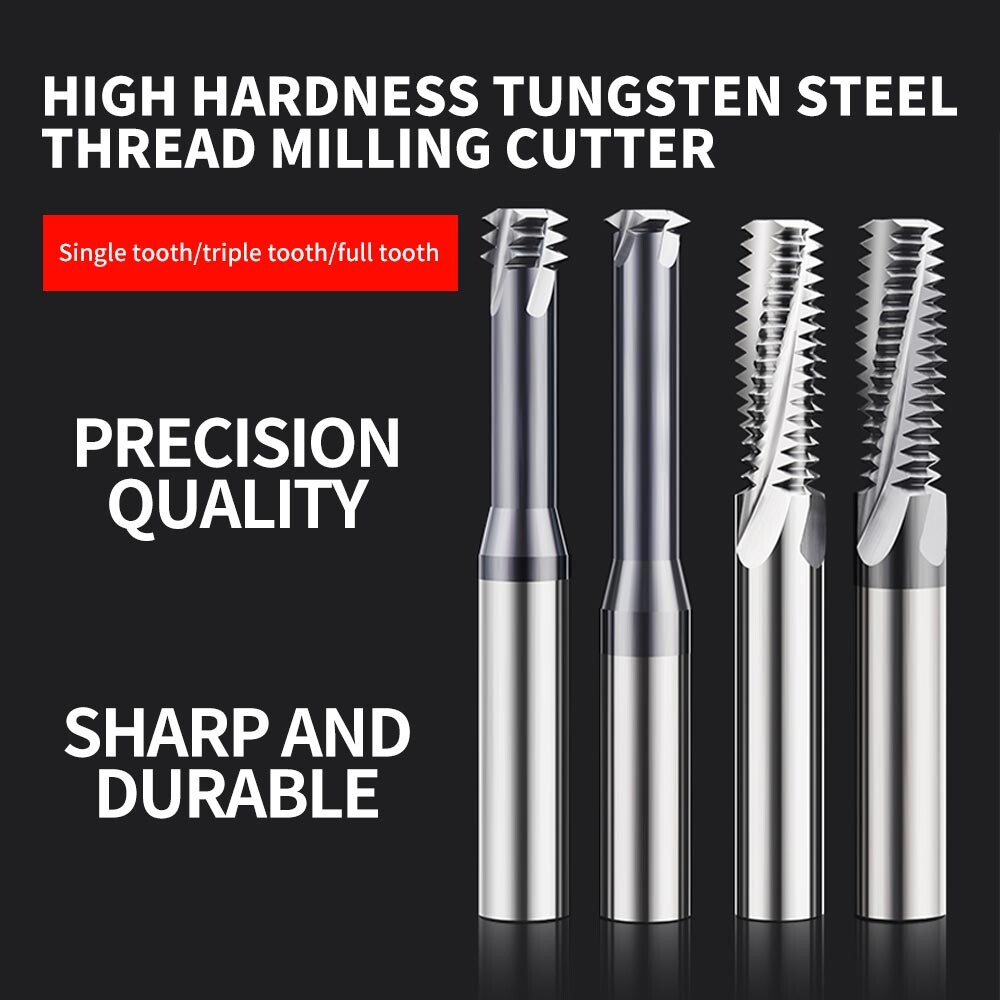

| 60° Tungsten Steel Thread Mill, Single Thread, Triple Thread, Full Thread, Stainless Steel Machining Center, Aluminum Use, Metric, Coated Thread Milling Cutter |
| Product Type | Blade Diameter | Avoidance Diameter | Effective Blade length | Shank Diameter | Total length | Number of Teeth |
| Single toothM1*0.25（D0.72*3.1*D4*50*3T） | 0.72 | 0.43 | 3.1 | 4 | 50 | 3 |

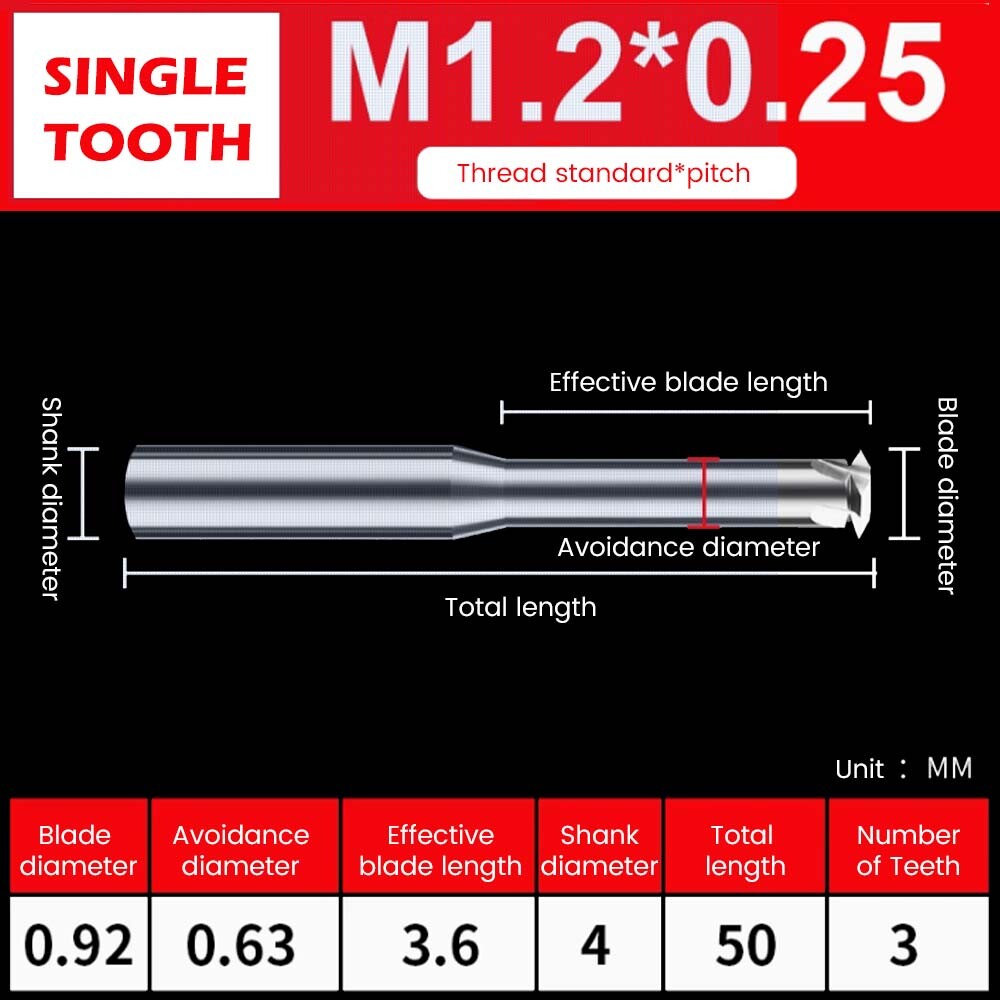

| Single toothM1.2*0.25（D0.92*3.6*D4*50*3T） | 0.92 | 0.63 | 3.6 | 4 | 50 | 3 |
| Single toothM1.4*0.3（D1.05*4.2*D4*50*3T） | 1.05 | 4.2 | 4 | 4 | 50 | 3 |
| Single toothM1.6*0.35（D1.2*4.8*D4*50*3T） | 1.2 | 0.8 | 4.8 | 4 | 50 | 3 |
| Single toothM1.8*0.35（D1.4*5.6*D4*50*3T） | 1.4 | 0.85 | 5.6 | 4 | 50 | 3 |
| Single toothM2*0.4（D1.55*6*D4*50*3T） | 1.55 | 0.9 | 6 | 4 | 50 | 3 |
| Single toothM2.5*0.45（D2*7.5*D4*50*3T） | 2 | 1.3 | 7.5 | 4 | 50 | 3 |
| Single toothM3*0.5（D2.4*9*D4*50*3T） | 2.4 | 1.6 | 9 | 4 | 50 | 3 |
| Single toothM3.5*0.6（D2.75*10*D4*50*3T） | 2.75 | 1.9 | 10 | 4 | 50 | 3 |
| Single toothM4*0.7（D3.15*12*D4*50*3T） | 3.15 | 2.1 | 12 | 4 | 50 | 3 |
| Single toothM5*0.8（D4*15*50*3T） | 4 | 2.8 | 15 | 4 | 50 | 3 |
| Single toothM6*1（D4.8*18*D6*50*3T） | 4.8 | 3.4 | 18 | 6 | 50 | 3 |
| Single toothM8*1.25（D5.9*24*D6*50*3T | 5.9 | 4.2 | 24 | 6 | 50 | 3 |
| Single toothM10*1.5（D7.9*28*D8*60*4T） | 7.9 | 5.6 | 28 | 8 | 60 | 4 |
| Single toothM12*1.75（D9.9*30*D10*75*4T） | 9.9 | 7.3 | 30 | 10 | 75 | 4 |
| Single toothM14*2（D9.9*36*D10*75*4T） | 9.9 | 7.3 | 36 | 10 | 75 | 4 |
| Single toothM16*2（D11.9*38*D12*75*4T） | 11.9 | 9.1 | 38 | 12 | 75 | 4 |
| Single toothM18*2.5（D13.9*48*D14*90*4T） | 13.9 | 10.3 | 48 | 14 | 90 | 4 |
| Single toothM20*2.5（D15.9*48*D16*90*4T） | 15.9 | 12.3 | 48 | 16 | 90 | 4 |
| Single toothM24*3（D15.9*48*D16*90*4T） | 15.9 | 11.5 | 48 | 16 | 90 | 4 |
| Three toothM1*0.25（D0.72*3*D4*50*3T） | 0.72 | 0.43 | 3 | 4 | 50 | 3 |
| Three toothM1.2*0.25（D0.92*3.2*D4*50*3T） | 0.92 | 0.63 | 3.2 | 4 | 50 | 3 |
| Three toothM1.4*0.3（D1.05*3.4*D4*50*3T） | 1.05 | 0.7 | 3.4 | 4 | 50 | 3 |
| Three toothM1.6*0.35（D1.2*4*D4*50*3T） | 1.2 | 0.8 | 4 | 4 | 50 | 3 |
| Three toothM1.8*0.35（D1.4*4.1*D4*50*3T） | 1.4 | 0.85 | 4.1 | 4 | 50 | 3 |
| Three toothM2*0.4（D1.55*4.4*D4*50*3T） | 1.55 | 0.9 | 4.4 | 4 | 50 | 3 |
| Three toothM2.5*0.45（D2*5.3*D4*50*3T） | 2 | 1.3 | 5.3 | 4 | 50 | 3 |
| Three toothM3*0.5（D2.4*6.4*D4*50*3T） | 2.4 | 1.6 | 6.4 | 4 | 50 | 3 |
| Three toothM3.5*0.6（D2.75*7.4*D4*50*3T） | 2.75 | 1.9 | 7.4 | 4 | 50 | 3 |
| Three toothM4*0.7（D3.15*8.6*D4*50*3T） | 3.15 | 2.1 | 8.6 | 4 | 50 | 3 |
| Three toothM5*0.8（D3.9*10*50*3T） | 3.9 | 2.8 | 10 | 4 | 50 | 3 |
| Three toothM6*1（D4.8*12*D6*50*3T） | 4.8 | 3.4 | 12 | 6 | 50 | 3 |
| Three toothM8*1.25（D5.9*16*D6*50*3T） | 5.9 | 4.2 | 16 | 6 | 50 | 3 |
| Three toothM10*1.5（D7.9*20*D8*60*4T） | 7.9 | 5.6 | 20 | 8 | 60 | 4 |
| Three toothM12*1.75（D9.9*30*D10*75*4T） | 9.9 | 7.3 | 30 | 10 | 75 | 4 |
| Three toothM14*2（D9.9*30*D10*75*4T） | 9.9 | 7.3 | 30 | 10 | 75 | 4 |
| Three toothM16*2（D11.9*30*D12*75*4T） | 11.9 | 9.1 | 30 | 12 | 75 | 4 |
| Three toothM18*2.5（D13.9*36*D14*90*4T） | 13.9 | 10.3 | 36 | 14 | 90 | 4 |
| Three toothM20*2.5（D15.9*36*D16*90*4T） | 15.9 | 12.3 | 36 | 16 | 90 | 4 |
| Three toothM24*3（D15.9*42*D16*90*4T） | 15.9 | 11.5 | 42 | 16 | 90 | 4 |
|
|
|
|
|
|
|
| Product Specification | Blade diameter | Blade Length | Handle Diameter | Total Length | Blade Count (T) |
|
| Full toothM3*0.5（D2.4*9*D4*50*3T） | 2.4 | 6 | 4 | 50 | 3 |
|
| Full toothM3.5*0.6（D2.75*7*D4*50*3T） | 2.75 | 7 | 4 | 50 | 3 |
|
| Full toothM4*0.7（D3.15*8*D4*50*3T） | 3.15 | 8 | 4 | 50 | 3 |
|
| Full toothM5*0.8（D3.9*10*D4*50*3T） | 3.9 | 10 | 4 | 50 | 3 |
|
| Full toothM6*1（D4.8*12*D6*50*3T） | 4.8 | 12 | 6 | 50 | 3 |
|
| Full toothM8*1.25（D5.9*16*D6*50*3T） | 5.9 | 16 | 8 | 50 | 3 |
|
| Full toothM10*1.5（D7.9*20*D8*60*4T） | 7.9 | 20 | 10 | 60 | 4 |
|
| Full toothM12*1.75（D9.9*30*D10*75*4T） | 9.9 | 30 | 10 | 75 | 4 |
|
| Full toothM14*2（D9.9*30*D10*75*4T） | 9.9 | 30 | 10 | 75 | 4 |
|
| Full toothM16*2（D11.9*30*D12*75*4T） | 11.9 | 30 | 12 | 75 | 4 |
|
| Full toothM18*2.5（D13.9*36*D14*90*4T） | 13.9 | 36 | 14 | 90 | 4 |
|
| Full toothM20*2.5（D15.9*42*D16*90*4T） | 15.9 | 42 | 16 | 90 | 4 |
|
| Full toothM24*3（D15.9*42*D16*90*4T） | 15.9 | 42 | 16 | 90 | 4 |
|
