Tungsten Steel Chamfering Cutter 90°, 12mm, Carbide, 6-Flute, Extended 8, Center Drill 10, Spot Drill 4mm, 1, 2, 3, 2.5.

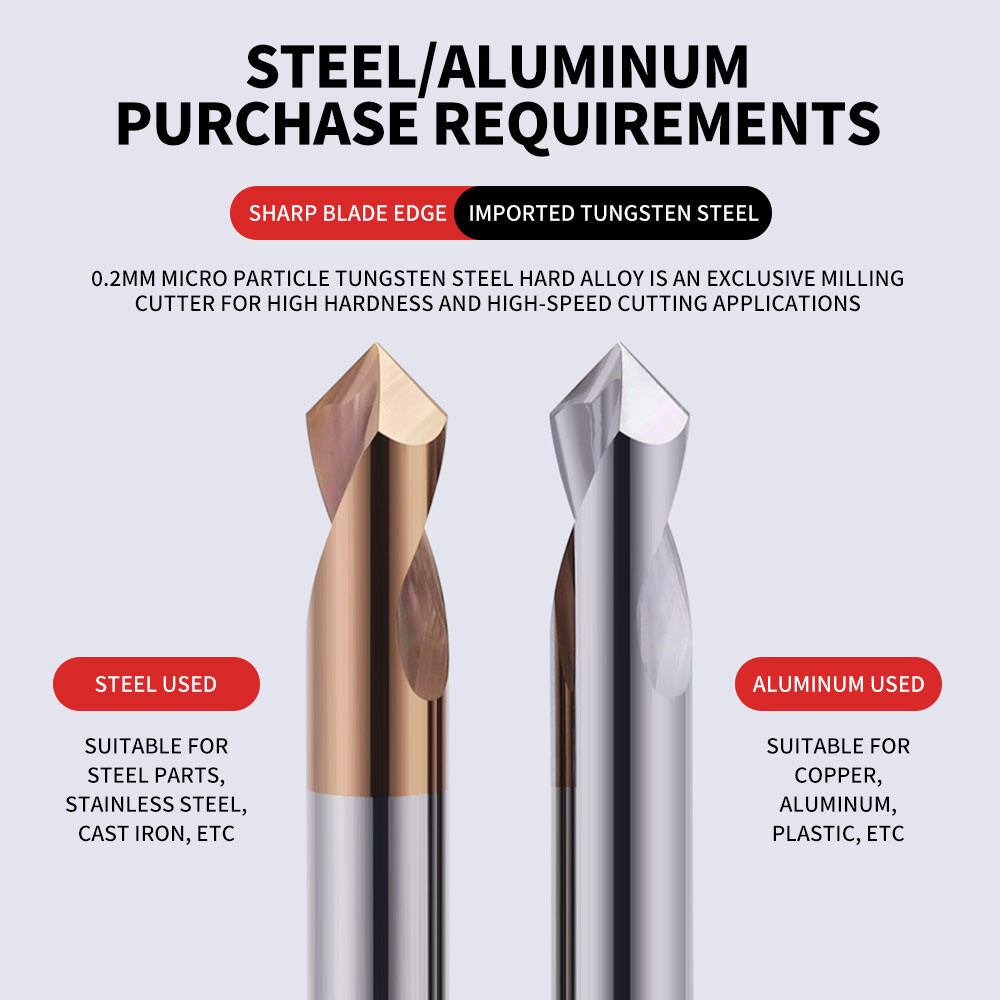

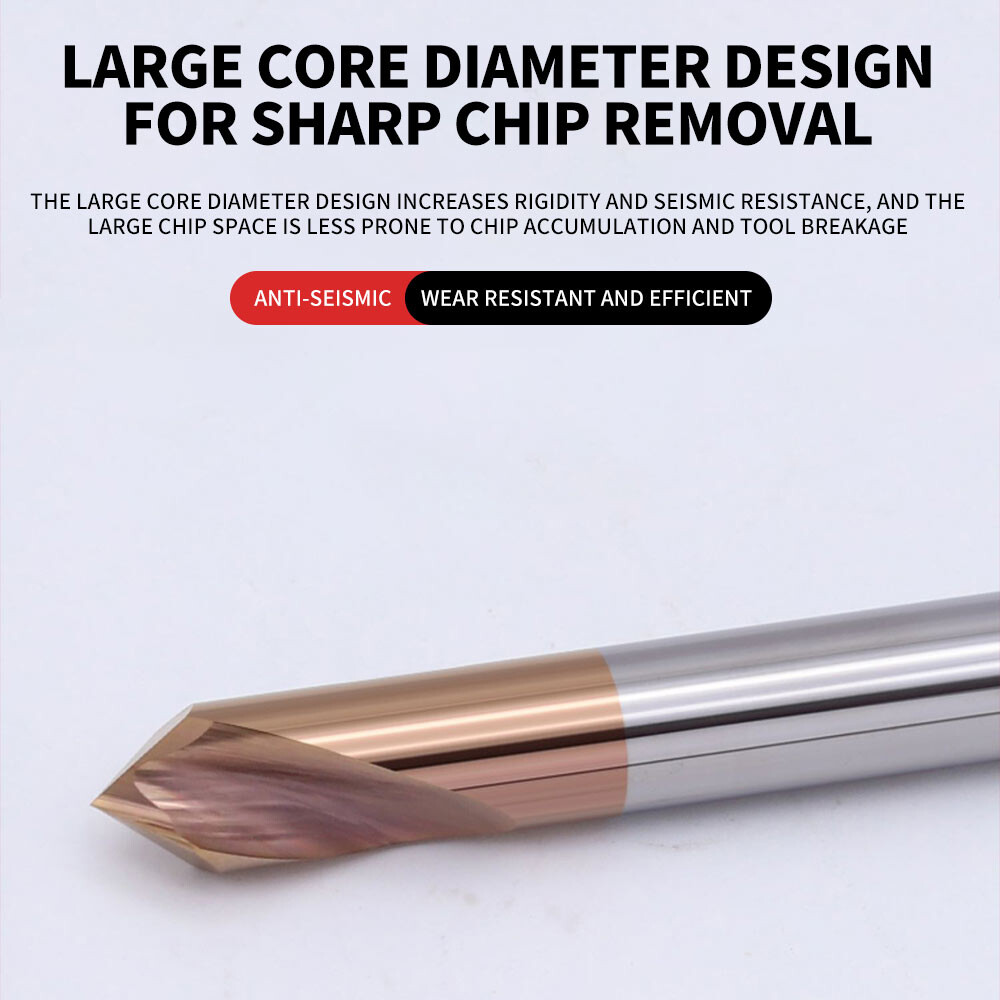

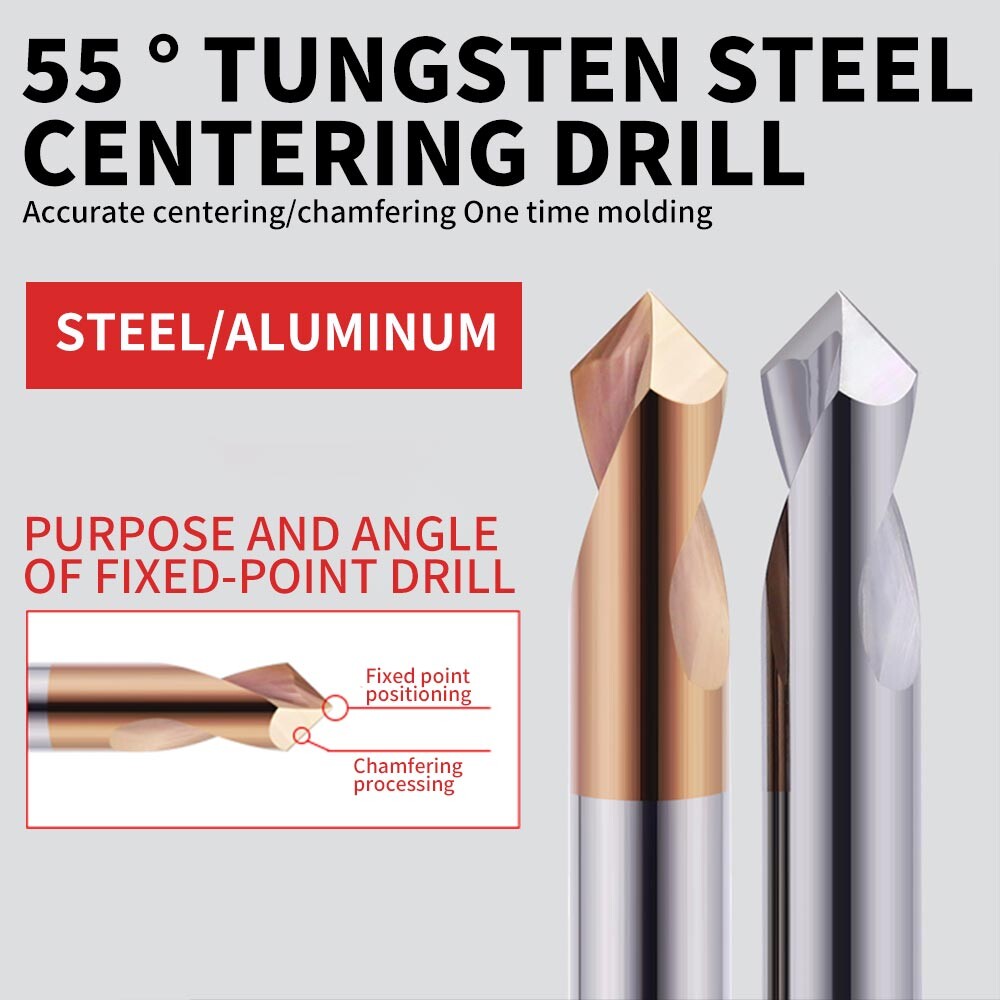

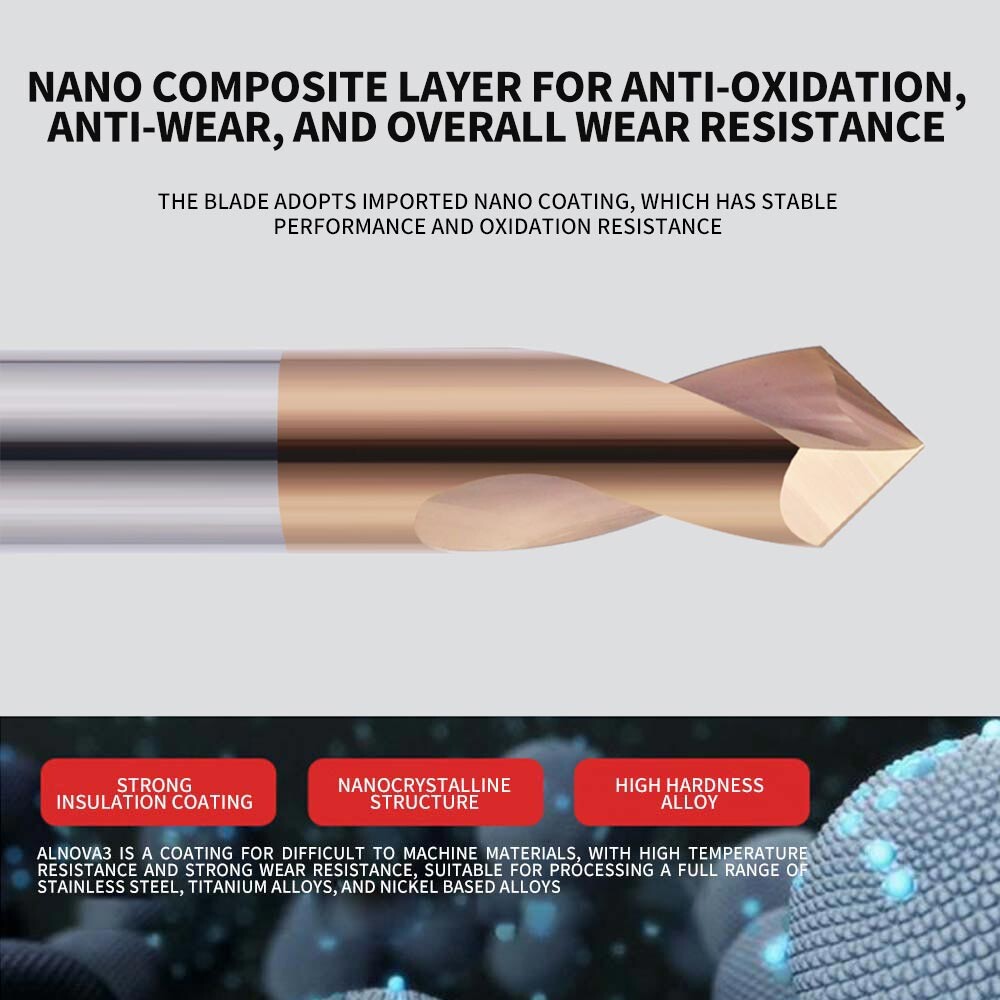

(Please contact me for more sizes) This product is made of tungsten steel, has a 90-degree chamfer function, a diameter of 12 mm, and is made of carbide material, which has high hardness and wear resistance. The tool design has been extended six times in length to adapt to deep holes or difficult-to-operate machining environments. The chamfering tool is equipped with a center drill and a fixed-point drill. The diameter of the center drill is 10 mm and the diameter of the fixed-point drill is 4 mm, ensuring processing accuracy and stability. Product specifications also include sizes of 1 mm, 2 mm, 3 mm and 2.5 mm to meet diverse processing needs.
Contact Us

Product Details


Tungsten Steel Chamfering Cutter 90°, 12mm, Carbide, 6-Flute, Extended 8, Center Drill 10, Spot Drill 4mm, 1, 2, 3, 2.5.
SpecificationBlade DiameterShank Diameter (D)Overall Length (L)Angle

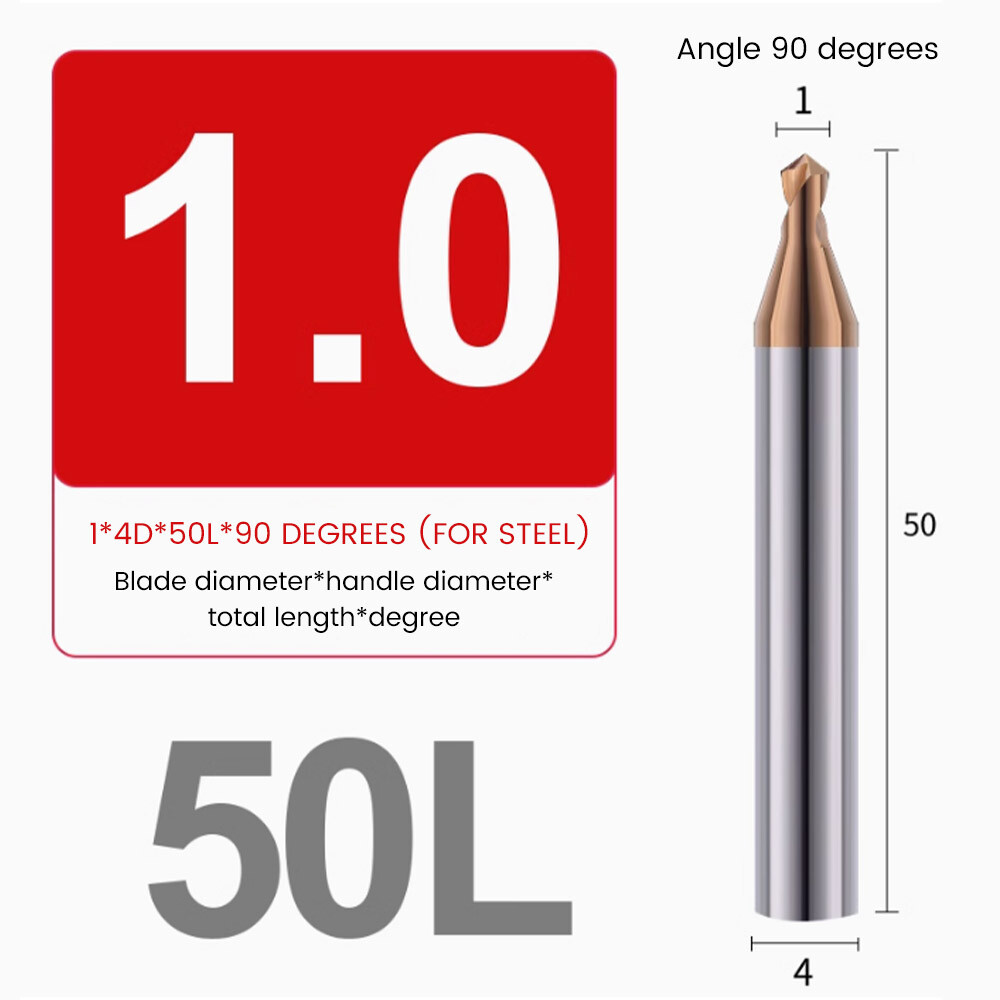

1*4D*50L*90°（For Steel）145090
1.5*4D*50L*90°（For Steel）1.545090
2*4D*50L*90°（For Steel）245090
2.5*4D*50L*90°（For Steel）2.545090
3*4D*50L*90 °345090
4*4D*50L*90 °445090
4*4D*100L*90 °4410090
5*5D*50L*90 °555090
5*5D*100L*90 °5510090
6*6D*50L*90 °665090
6*6D*100L*90 °6610090
8*8D*60L*90 °886090
8*8D*100L*90 °8810090
10*10D*75L*90 °10107590
10*10D*100L*90 °101010090
12*12D*75L*90 °12127590
12*12D*100L*90 °121210090
14*14D*100L*90 °141410090
16*16D*100L*90 °161610090
20*20D*100L*90 °202010090
4*4D*50L*60 °446060
6*6D*50L*60 °666060
8*8D*60L*60°（For Steel）886060
10*10D*75L*60°（For Steel）10106060
12*12D*75L*60°（For Steel）12126060
4*4D*50L*120°（For Steel）44120120
6*6D*50L*120°（For Steel）66120120
8*8D*60L*120°（For Steel）88120120
10*10D*75L*120°（For Steel）1010120120
12*12D*75L*120°（For Steel）1212120120

FAQ

What are the models or versions of the product?
We offer multiple models and versions to meet the needs of different users.


What is the warranty policy for the product?
During the warranty period, if the product experiences non-human damage, we will provide free repair or replacement services.



How to install and use the product correctly?
The installation and use of the product are very simple. You can operate according to the instructions provided with the product.



Can I add my logo?
Yes ，We can also provide designs for free.


When can I get more information and quotes?
Normally, we will respond within 15 minutes of receiving the enquiry. You can also call us,write an email or whatsapp and so on to us directly to get the quick response.
